Uziwave TDD 5.7-5.9G-100W-1916-48GaN Power Amplifier

- Integrated TDD design for 5.7-5.9GHz ad-hoc networks, delivering 100W high-power output
- Optimized UL/DL performance: 10±2dB uplink gain with ≤4dB noise figure (filtered UL), 53±2dB downlink gain with ≥50dBm max output power
- Superior signal quality: ≤2dB in-band ripple, ≥55dBc TX-RX isolation, ≤5% EVM (tested at 8dB PAPR)
- Robust hardware protection: +95℃ over-temperature shutdown (auto-restart at 75℃), ≤1.4 input/output VSWR

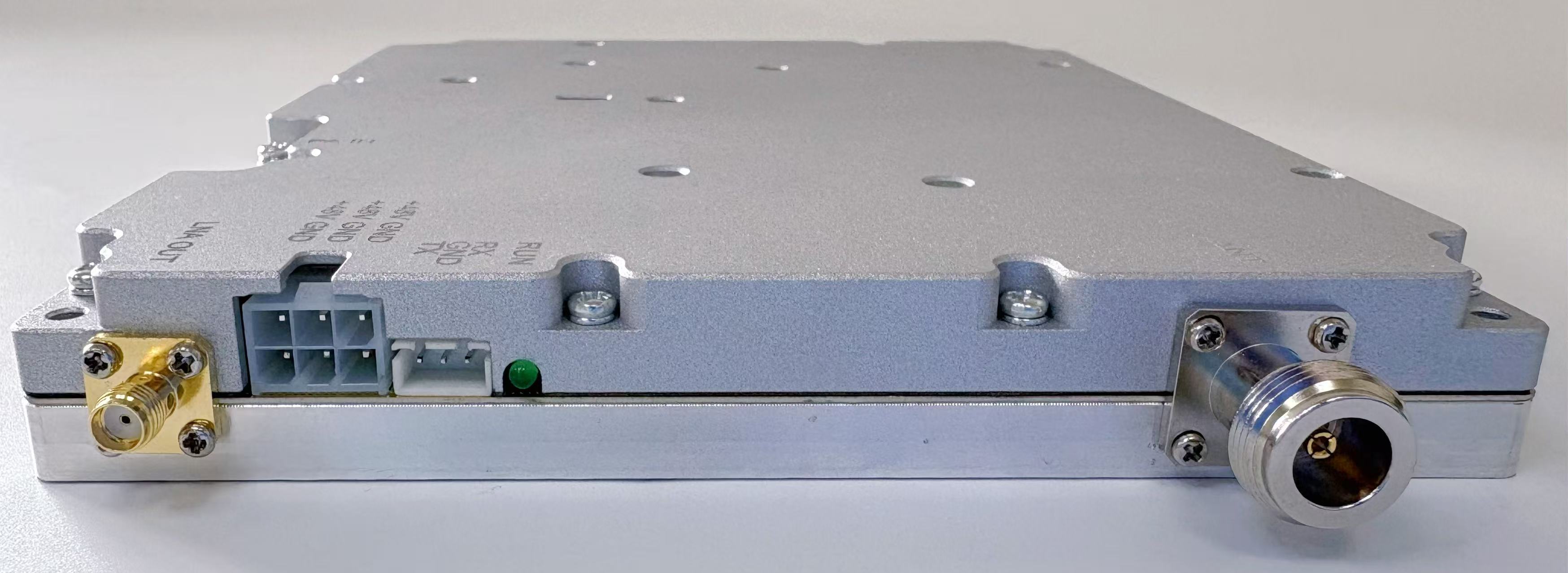

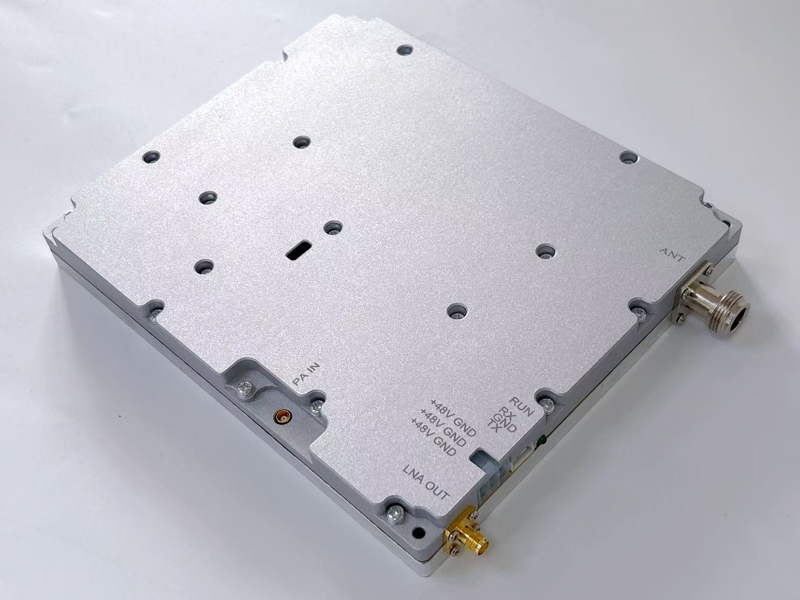

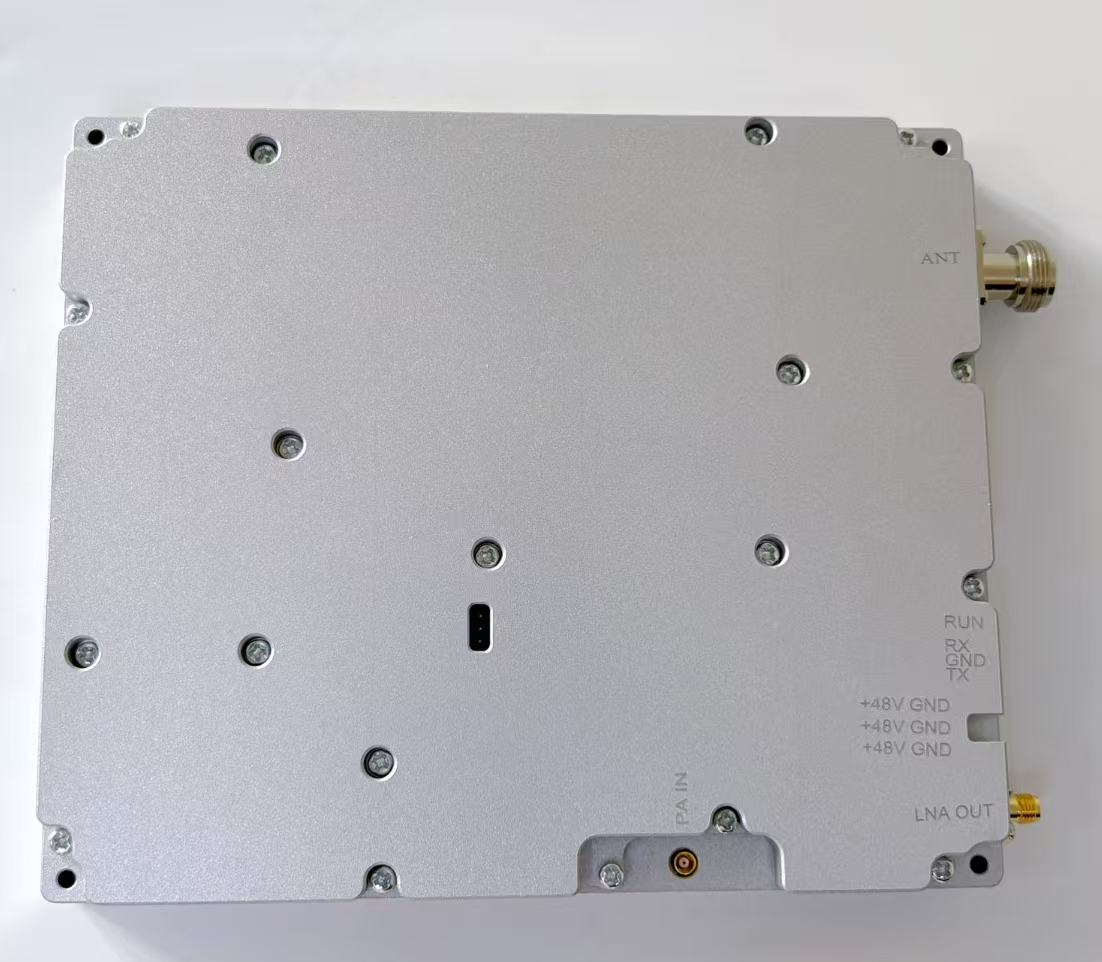

- Flexible interface configuration: 3 RF connectors (PA IN: MCX; LNA OUT: SMA; ANT: N-K type) with CMOS 3.3V TX/RX wire control

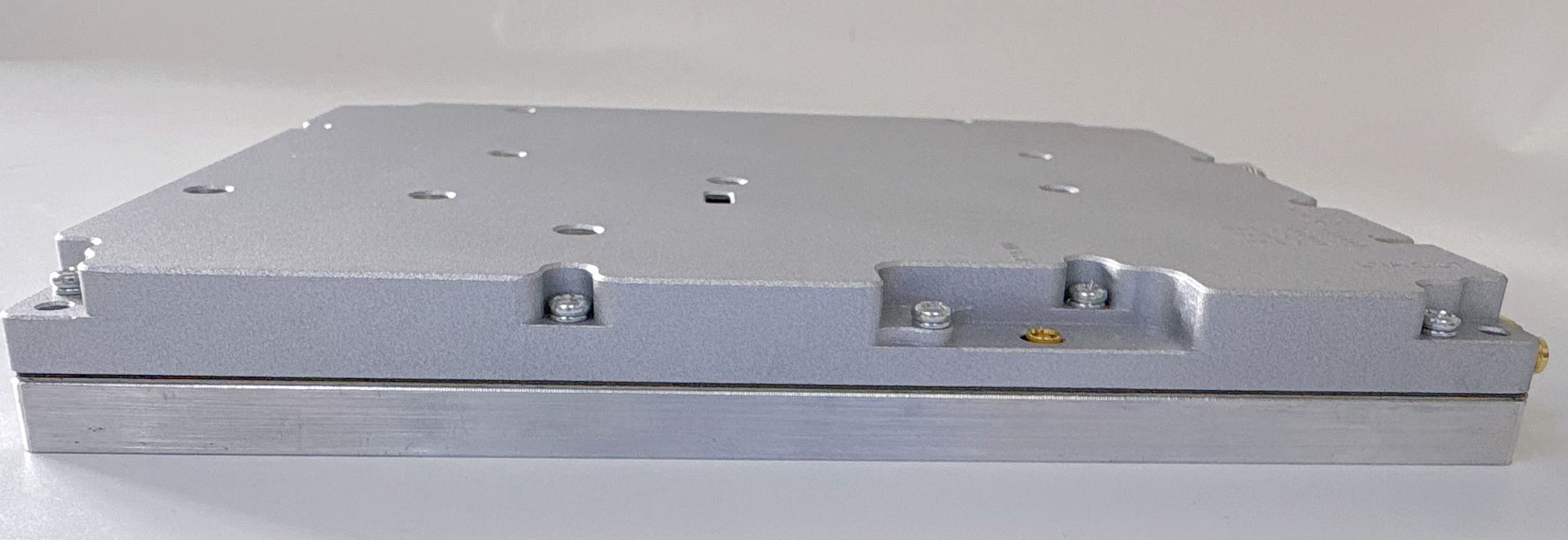

- Compact 190×160×23mm form factor, 48V/≤11A low-power operation for easy integration

Model:
Uzi-TDD 5.7-5.9G-100W-1916-48GaN
Brand:
Uziwave

Quantity:
Availability:





Inquire

TDD Power Amplifier Power Amplifier Mesh Network

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	5700-5900MHz
Gain:	UL:10±2dB DL:53±2dB
Maximum Output Power:	UL:- DL:≥50dBm
Gain Adjustment Range:	NONE
ALC Range:	NONE
Noise Figure:	≤4dB (Uplink with filter)
VSWR:	≤1.4 (Tested with DL PA turned off after power-on. Ensure DL PA is off before testing; otherwise, the instrument may be damaged.)
In-Band Ripple:	≤2dB (Applicable to both UL & DL)
TX-RX Isolation:	≥55dBc (Applicable to both UL & DL)
Error Vector Magnitude (EVM):	≤5% (at 8dB PAPR)
Operating Voltage:	48V
Operating Current:	≤11A
Working Temperature:	-40～+55℃
Over-Temperature Protection:	Alarms and shuts down at +95℃; restarts at +75℃
TX/RX Wire Control Interface：	CMOS 3.3V
RF Connectors：	3 connectors in total: PA IN: MCX Connector; LNA OUT: SMA Connector; ANT: N-type (K-type) Connector
Monitoring Functions:	NONE
Mechanical Dimensions:	190×160×23mm
