Jammer of 50W Multi Band Power Amplifier

Features:
- Covers multiple core frequency bands for drones: Precisely targets common drone frequency ranges (433MHz for remote control, 863-870MHz for image transmission, 2.4GHz/5.15-5.875GHz for high-definition transmission) via 13 product models, and uses 50W high power output to effectively suppress drone communication links, forcing drones to return or land.
- Intelligent VSWR protection & automatic power recovery: Triggers automatic power reduction to 3W when VSWR exceeds the standard (to prevent component damage) during anti-drone jamming; automatically restores to rated power once VSWR returns to normal, ensuring continuous and stable jamming operations.
- High gain flatness for stable jamming: Maintains gain flatness ≤±1dB at ATT10dB/ATT20dB and ≤±1.5dB at ATT25dB, ensuring uniform and stable jamming signal intensity across bands, avoiding "blind spots" and enhancing anti-drone reliability.
Technical Specification:
Product Name:
1. UZI-GRQ-433~435M-50W-16550-485
2. UZI-GRQ-758~788M-50W-16550-485
3. UZI-GRQ-791~821M-50W-16550-485
4. UZI-GRQ-863~870M-50W-16550-485
5. UZI-GRQ-902~928M-50W-16550-485
6. UZI-GRQ-1805~1880M-50W-16550-485
7. UZI-GRQ-2110~2170M-50W-16550-485
8. UZI-GRQ-2400~2500M-50W-16550-485
9. UZI-GRQ-2620~2690M-50W-16550-485
10. UZI-GRQ-3400~3800M-50W-16550-485
11. UZI-GRQ-5150~5350M-50W-16550-485
12. UZI-GRQ-5470~5725M-50W-16550-485
13. UZI-GRQ-5725~5875M-50W-16550-485
Cautions
1. CW Continuous wave signal
2. Monitoring:RS485
3. VSWR

Model:
UZI-GRQ-433~5875M (Multi Band)-50W-16550-485
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

RF Repeater FDD Power Amplifier TDD Power Amplifier Anti-Drone Power Amplifier Electronic Fence

Product Description

Specification： Jammer of 50W Power Amplifier

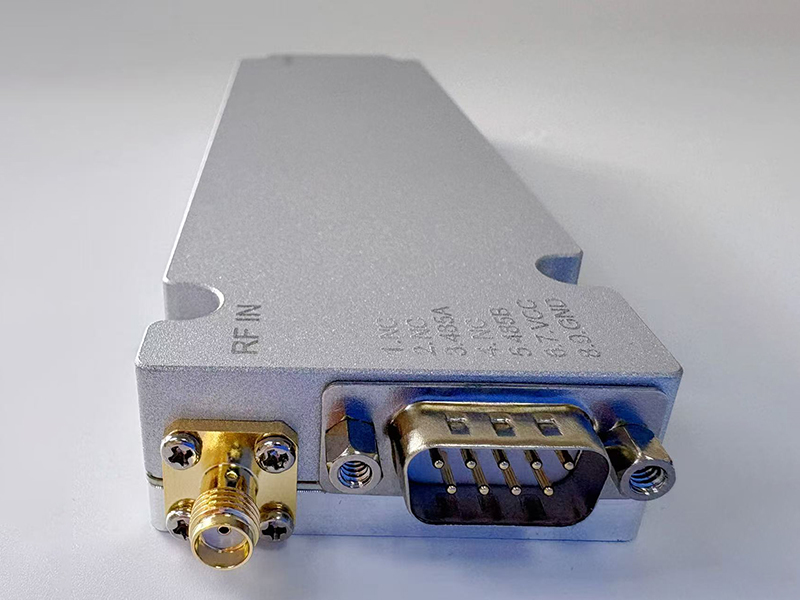

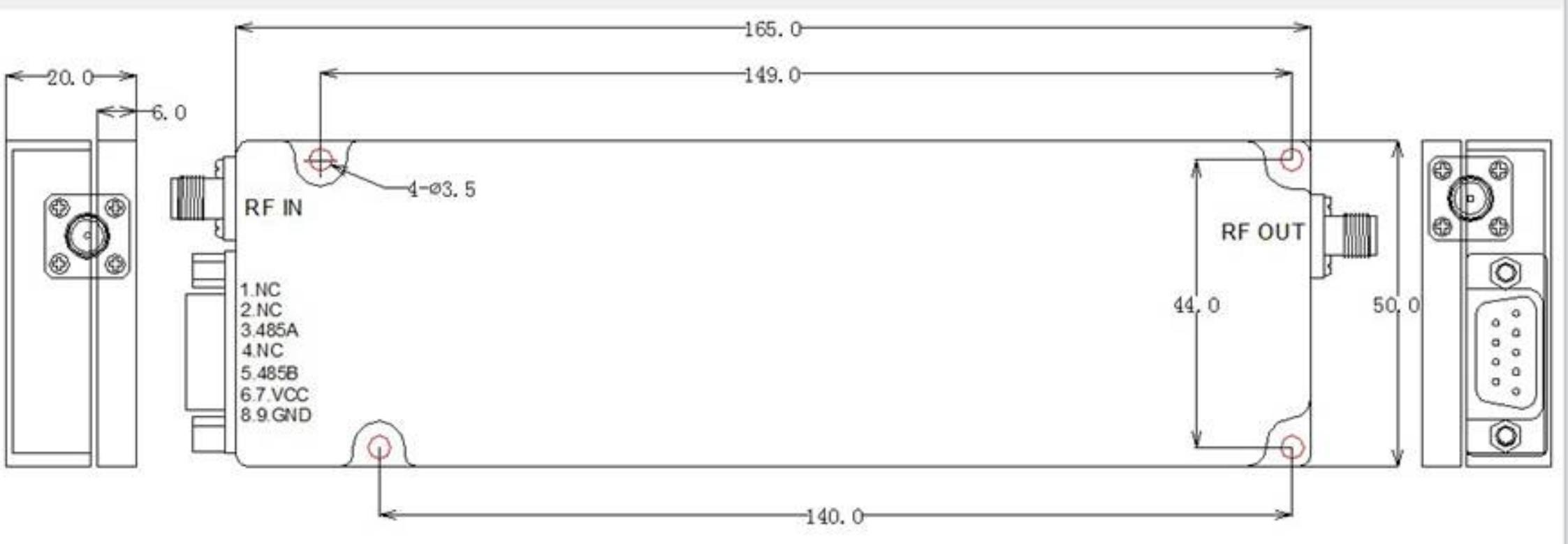

size：165*50mm （Monitoring:RS485） Power Supply：28V ( CW Continuous wave signal)

NO.1： PA-433-435M 50W Model：GRQ-433~435M-50W-16550-485 NO.2： PA-758-788M 50W Model：GRQ-758~788M-50W-16550-485 NO.3： PA-791-821M 50W Model：GRQ-791~821M-50W-16550-485 NO.4： PA-863-870M 50W Model：GRQ-863~870M-50W-16550-485 NO.5： PA-902-928M 50W Model：GRQ-902~928M-50W-16550-485 NO.6： PA-1805-1880M 50W Model：GRQ-1805~1880M-50W-16550-485 NO.7： PA-2110-2170M 50W Model：GRQ-2110~2170M-50W-16550-485 NO.8： PA-2400-2500M 50W Model：GRQ-2400~2500M-50W-16550-485 NO.9： PA-2620-2690M 50W Model：GRQ-2620~2690M-50W-16550-485 NO.10：PA-3400-3800M 50W Model：GRQ-3400~3800M-50W-16550-485 NO.11：PA-5150-5350M 50W Model：GRQ-5150~5350M-50W-16550-485 NO.12：PA-5470-5725M 50W Model：GRQ-5470~5725M-50W-16550-485 NO.13：PA-5725-5875M 50W Model：GRQ-5725~5875M-50W-16550-485
1、CW Continuous wave signal 2、Monitoring:RS485 4、VSWR Fail Alarm：After the standing wave alarm, the power of the amplifier drops to 3W; After the standing wave returns to normal, the power amplifier automatically returns to normal。
	1	Max. Gain	51±1dB
	2	Output Power	47±1dBm
	3	Max. Input Power Without Damage	+10dBm
	4	Automatic Gain Control	≥10dB
	5	Manual Gain Control	≥25dB
	6	Gain Flatness	10dB： ≤±1dB
			20dB： ≤±1dB
			25dB： ≤±1.5dB
