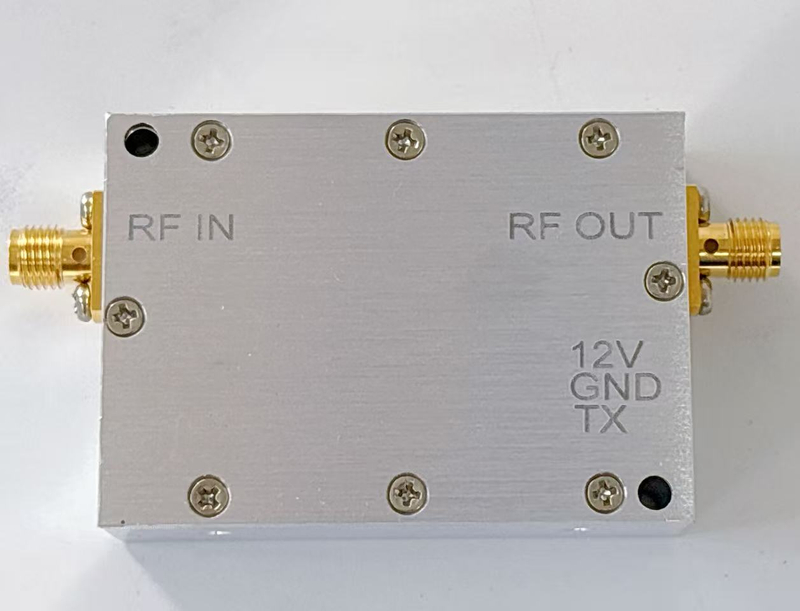

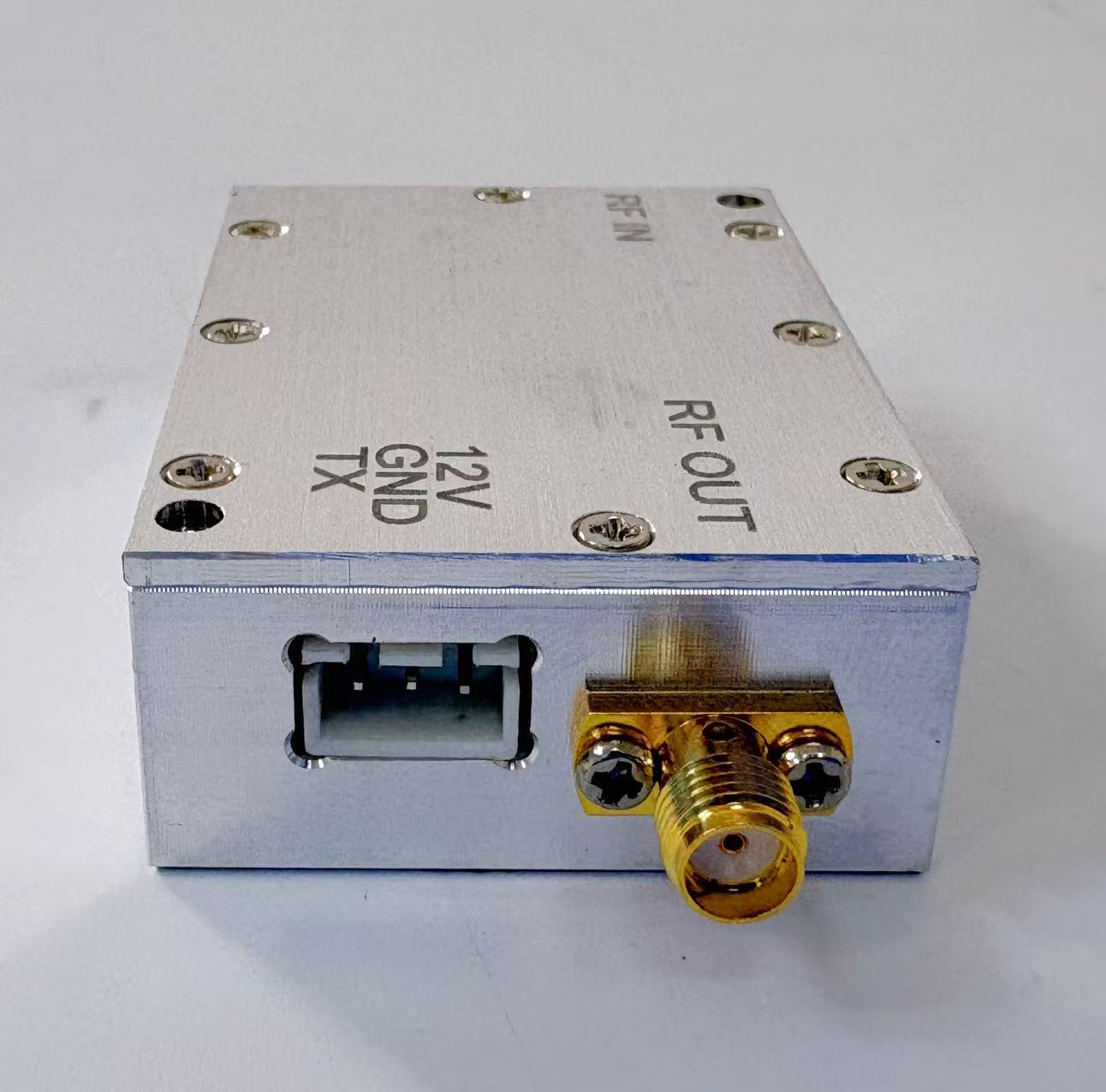

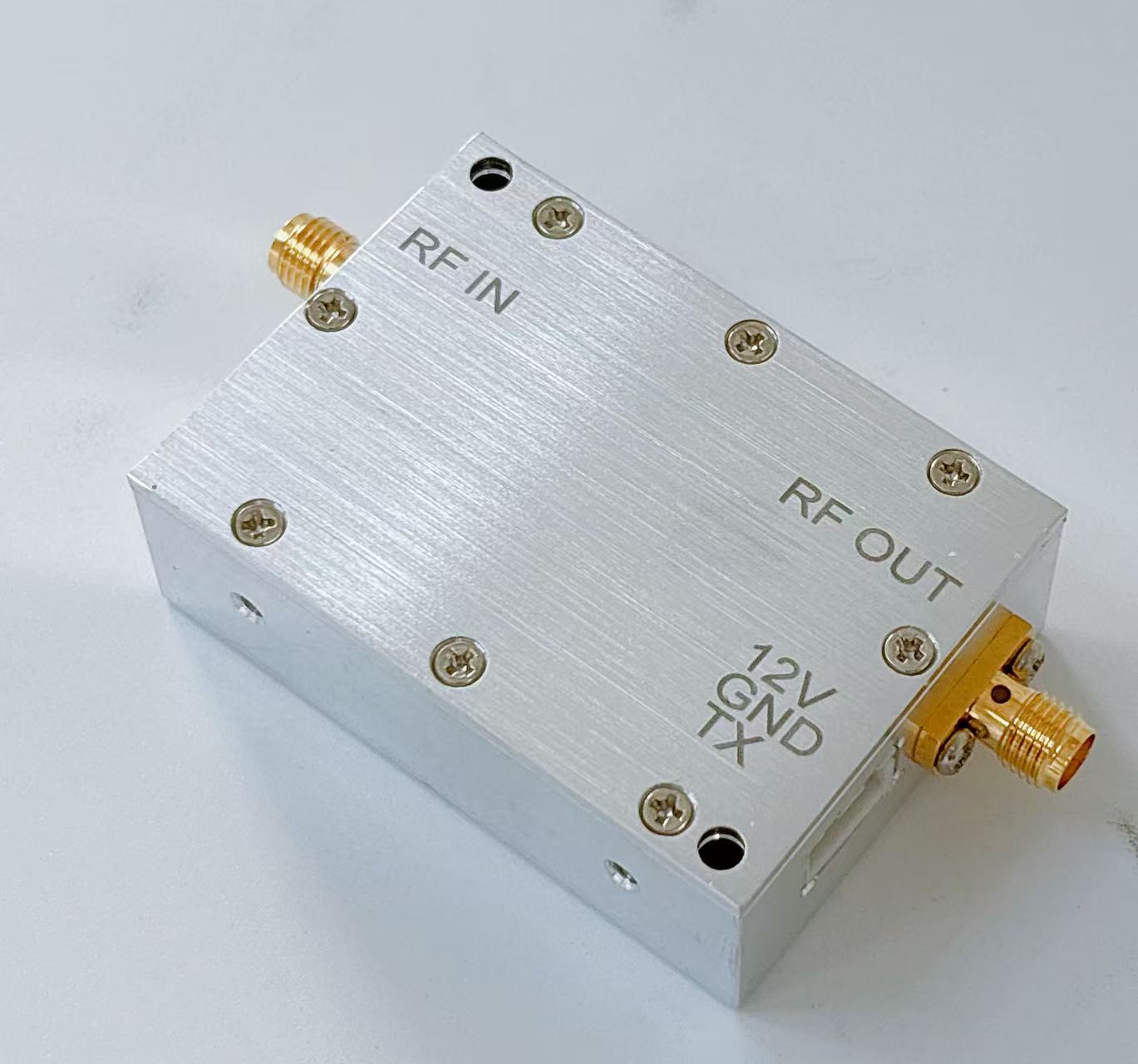

Uziwave TDD 2.8-3.4G Multi band Power Amplifier with 12V TX

Features:
- High consistency & stable performance for TDD 2.8-3.4GHz frequency bands
- Compact 54×38×18mm form factor with low 12V/≤0.5A power consumption
- SMA-Female I/O connectors ensuring reliable RF interface matching (VSWR ≤1.8)
- Support CMOS 3.3V fast TX switch control (high-enable, low-disabled)
- Flexible horizontal/vertical mounting options for diverse integration scenarios
- CMOS 3.3V-controlled fast TX switch (high-enable, low-disable; floating = default off)
Technical Specification:
Product Name:
1. UZI-TDD-2.8~3.0G-5438-12V-TX
2. UZI-TDD-3.0~3.2G-5438-12V-TX
3. UZI-TDD-3.2~3.4G-5438-12V-TX
Note:
1. TX (Fast Switch): Enabled by CMOS 3.3V high level; disabled by low level. Defaults to disabled when left floating.
2. Mounting Method: Horizontal/vertical installation (optional)

Model:
UZI-TDD-(2.8~3.0G;3.0~3.2G;3.2~3.4G)
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

FDD Power Amplifier Power Amplifier Mesh Network Electronic Fence

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	2800-3000MHz 3000-3200MHz 3200-3400MHz
Max Gain:	12±1dB
Maximum Output Power:	Uncontrolled
ALC Controll	Uncontrolled
Gain Adjustment Range:	NONE
In-Band Ripple:	≤2dB
VSWR:	≤1.8
Operating Voltage:	12V
Operating Current:	≤0.5A
Mechanical Dimensions:	543818 mm
I/O Connectors:	SMA-FEMALE
Appearance:	No obvious scratches; silk-screen printing is accurate
