Operating Frequency Band: | First Type: UL:3440-3620M DL:3440-3620M
Second Type: UL:3620-3800M DL:3620-3800M
|
Max Gain: | UL:25±2dB DL:51±2dB
|
Maximum Output Power: | UL:Uncontrolled DL:40±1dBm
|
Maximum Input Level: | UL:NONE DL:+10dBm
|
Gain Adjustment Range: | UL:NONE DL:≥25dB
|
ALC Range: | UL:NONE DL:≥10dB
|
Gain Flatness: | UL:NONE DL ATT10dB： ≤±1dB ATT20dB： ≤±1dB ATT25dB： ≤±1.5dB
|
In-Band Ripple: | ≤3dB |
Noise Figure: | UL:≤3.5dB DL:NONE
|
Tx-Rx Isolation: | ≥55dBc |
ACPR: | Without DPD: ≤-30dBc (source bandwidth 100M) |
EVM: | ≤3% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Out-of-band rejection: | 1～1000MHz@≥65dB 1000～2800MHz@≥65dB 2800～3400MHz@≥55dB 3400～3500MHz@≥50dB 3500～3530MHz@≥50dB 3530～3540MHz@≥22dB(-40℃~65℃) 3710～3720MHz@≥22dB(-40℃~65℃) 3720～3750MHz@≥50dB 3750～3850MHz@≥50dB 3850～4400MHz@≥55dB 3850～4400MHz@≥55dB 4400～6000MHz@≥74dB 6000～7200MHz@≥74dB 7.2～10GHz@≥64dB 10～15GHz@≥44dB
|
Operating Voltage: | 48V |
Operating Current: | ≤1.5A |
Baud Rate: | 19200 |
Working Temperature: | -40～+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication Settings: switch, gain; Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; Over-power alarm: alarm when the power exceeds the maximum output power by +2dB; Over-temperature alarm: recommended threshold is +85℃; alarm is triggered when the detected temperature exceeds +85℃, and the power amplifier is turned off simultaneously, then turned on at +65℃; Power amplifier temperature detection: the detection range shall include but not be limited to -25℃～+85℃, with a detection accuracy of ±3℃; Forward power detection: the detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB;
|
Transmit-receive wire control interface: | CMOS 3.3V |

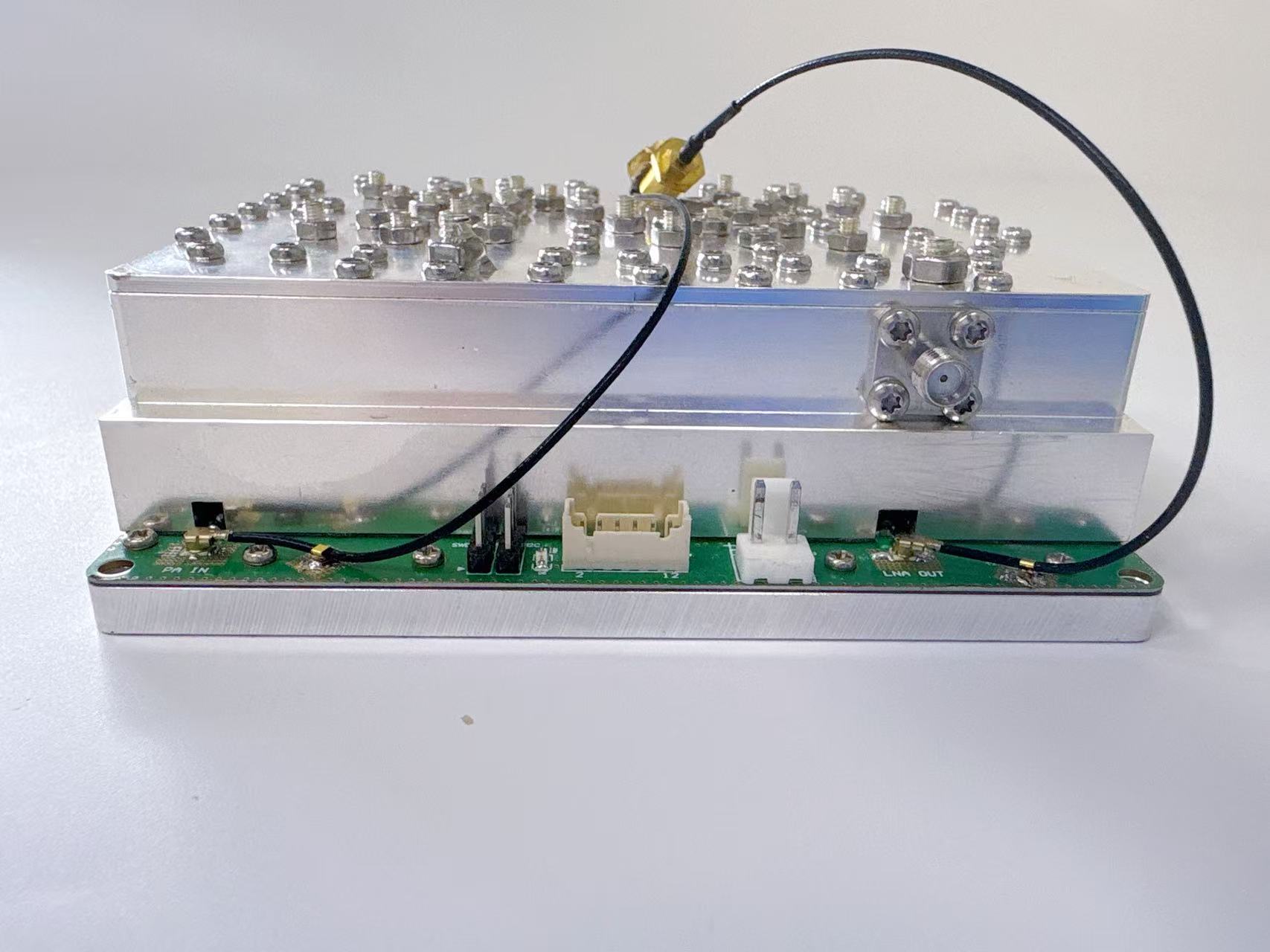

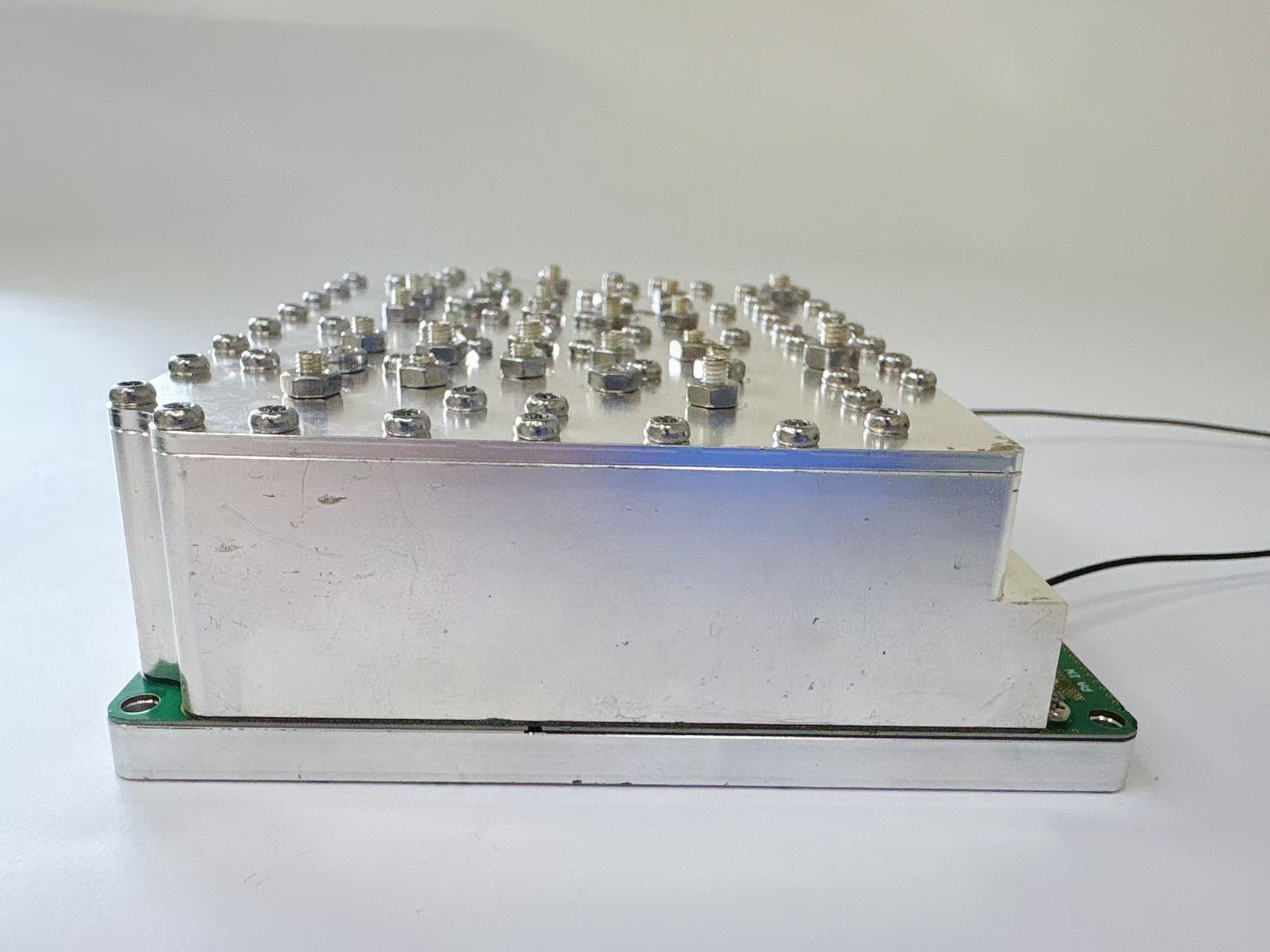

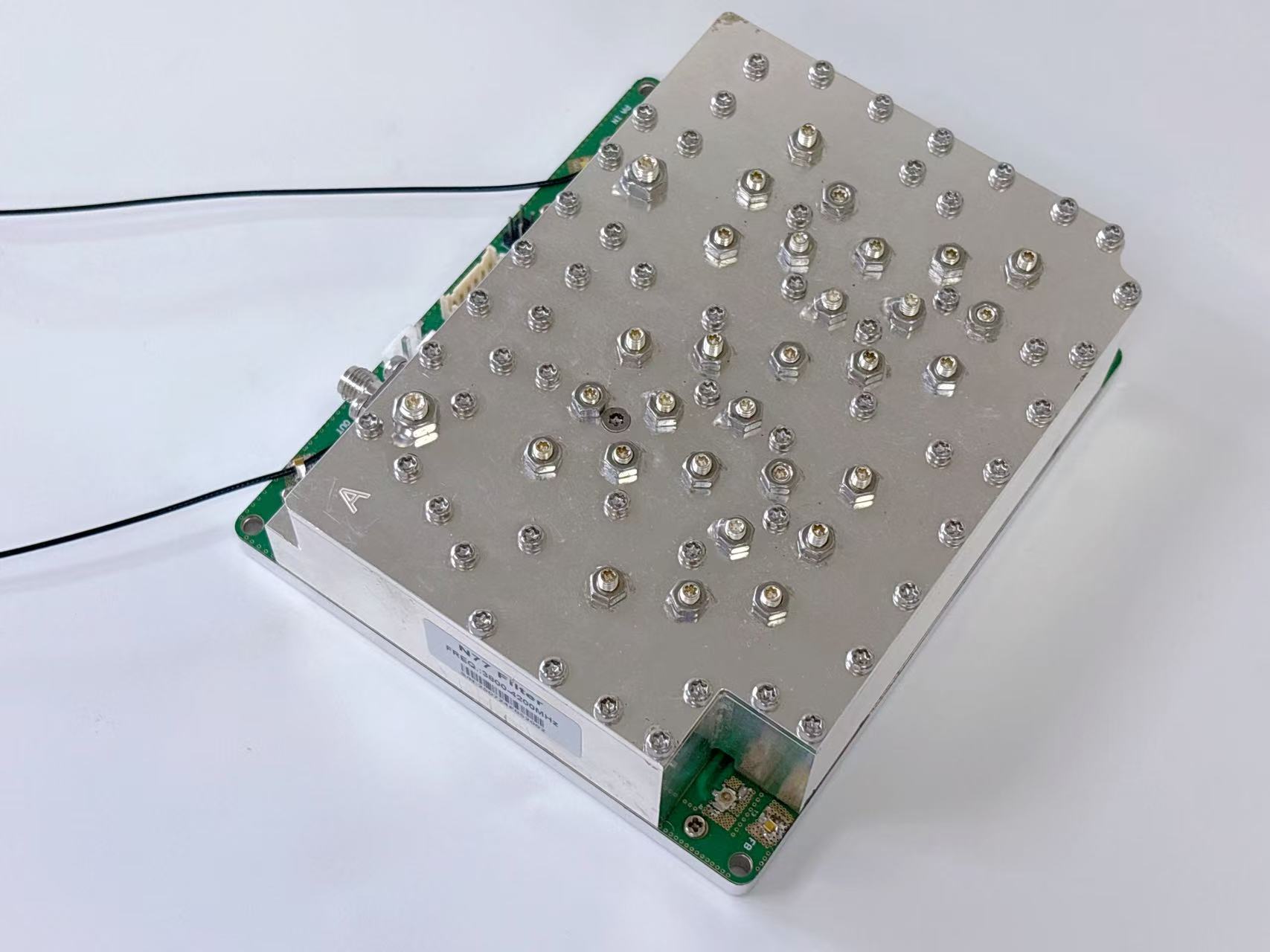

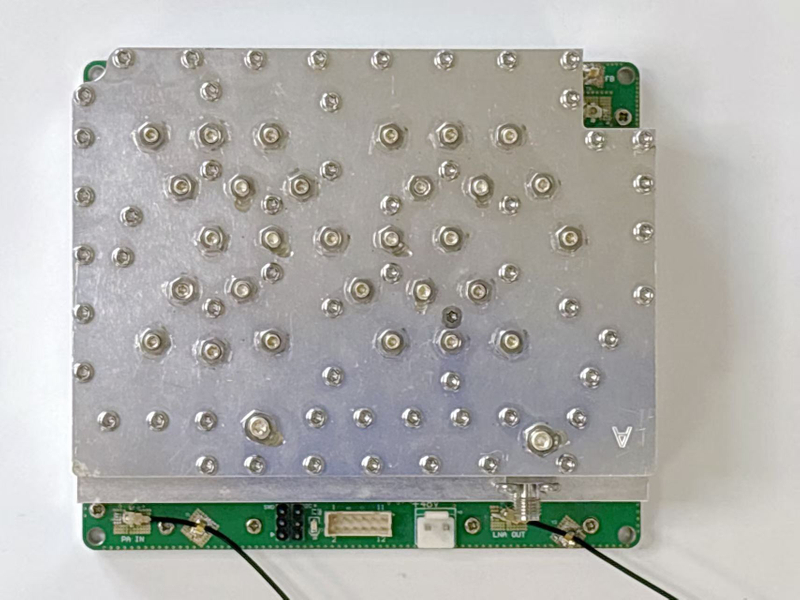

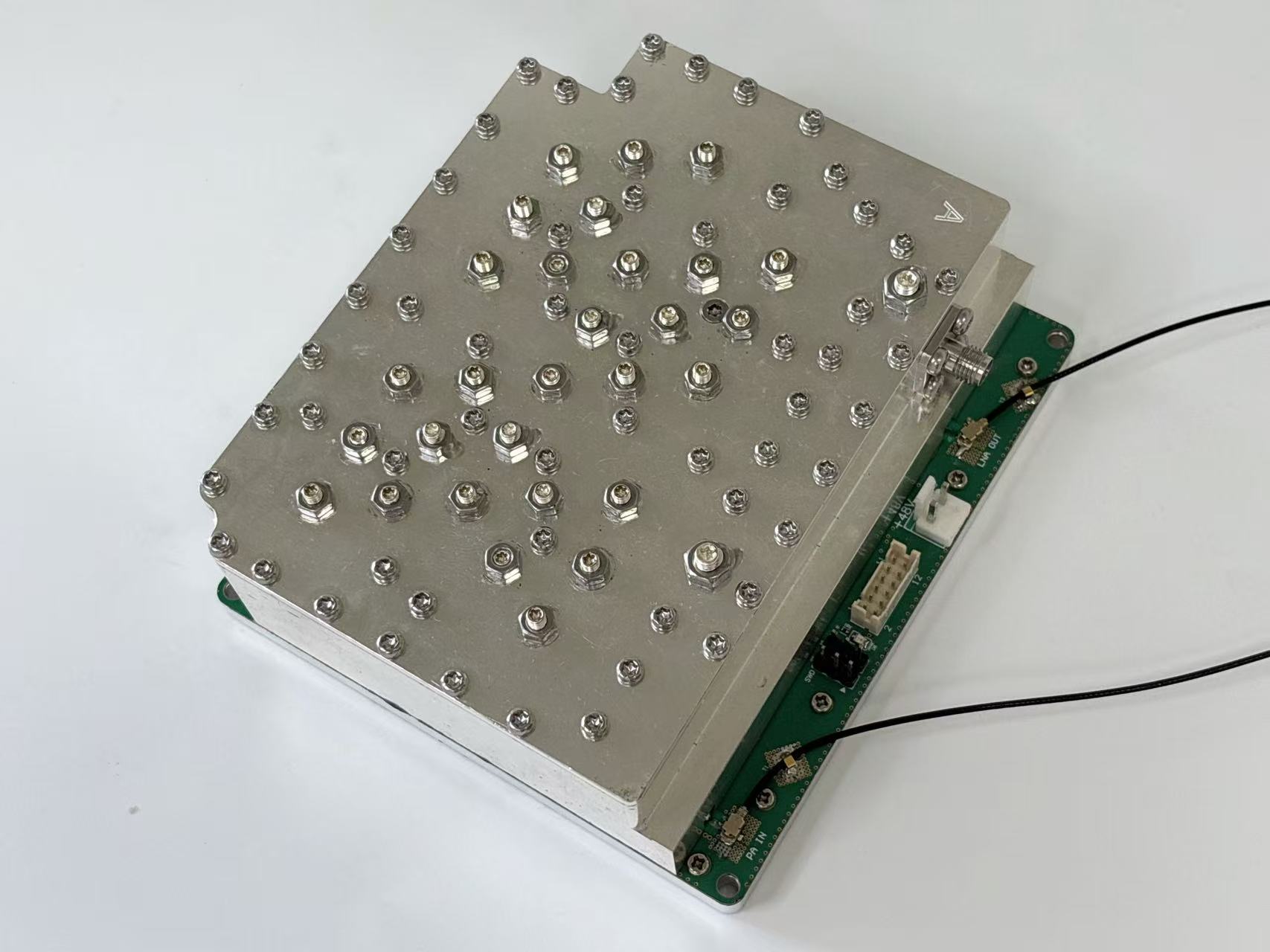

Connecters: | 4 connectors in total (including FB coupling port); ANT is an SMA connector, and the rest are IPEX connectors |
Mechanical Dimensions: | 120*105 |
