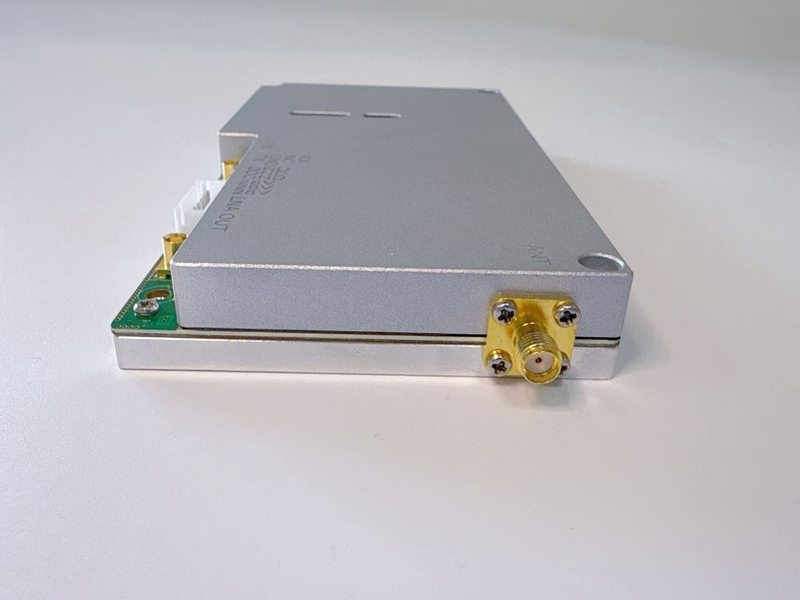

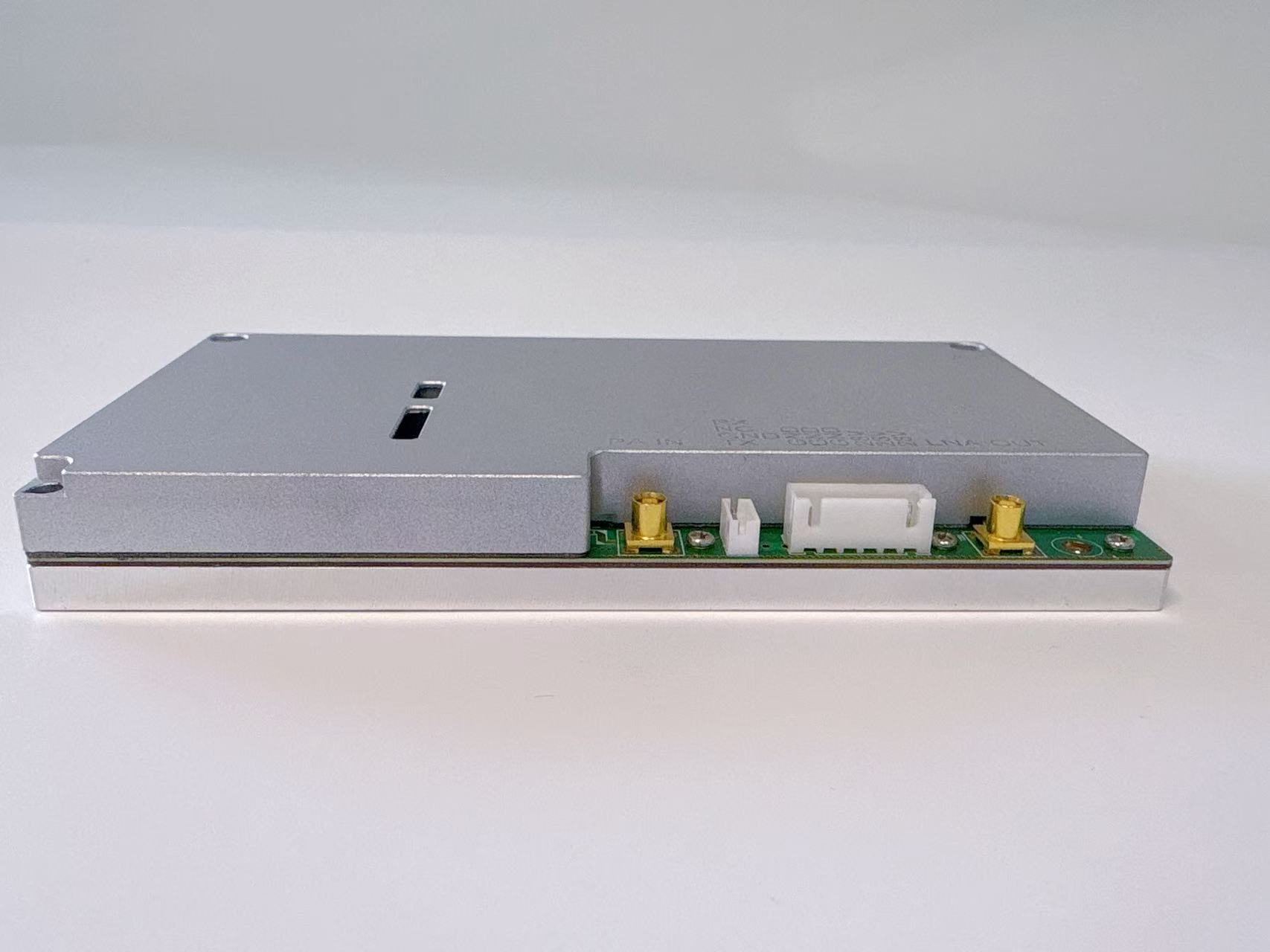

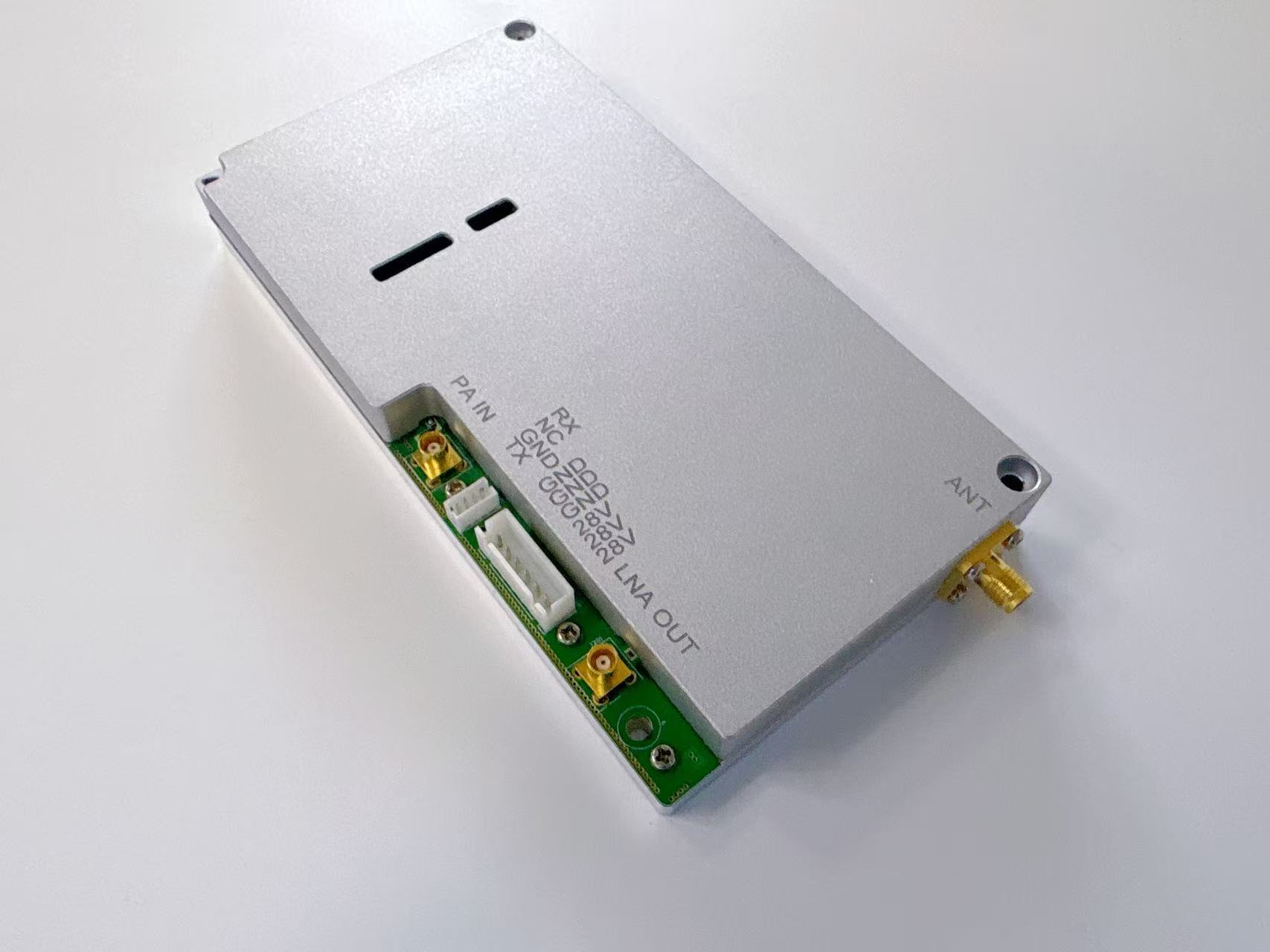

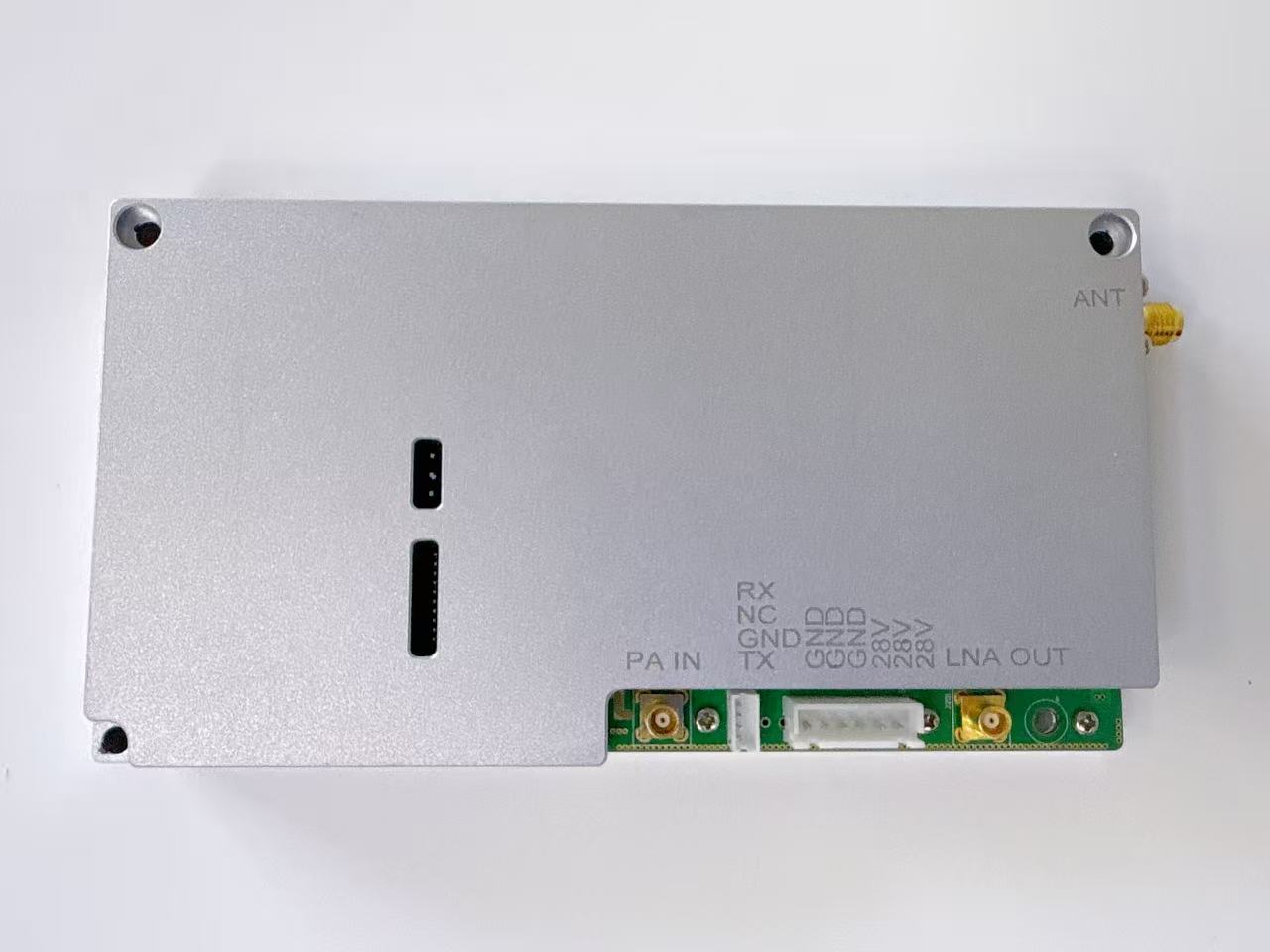

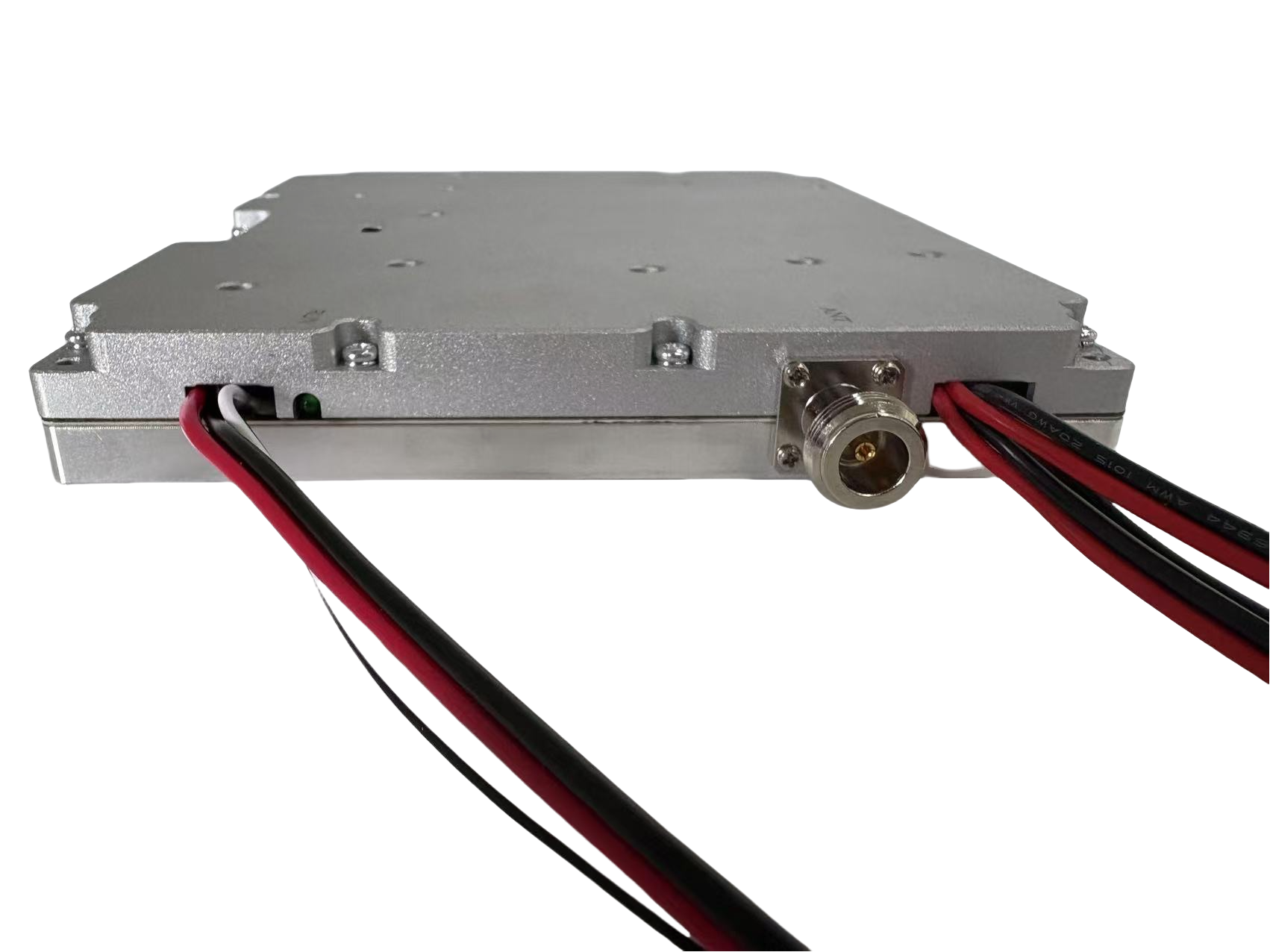

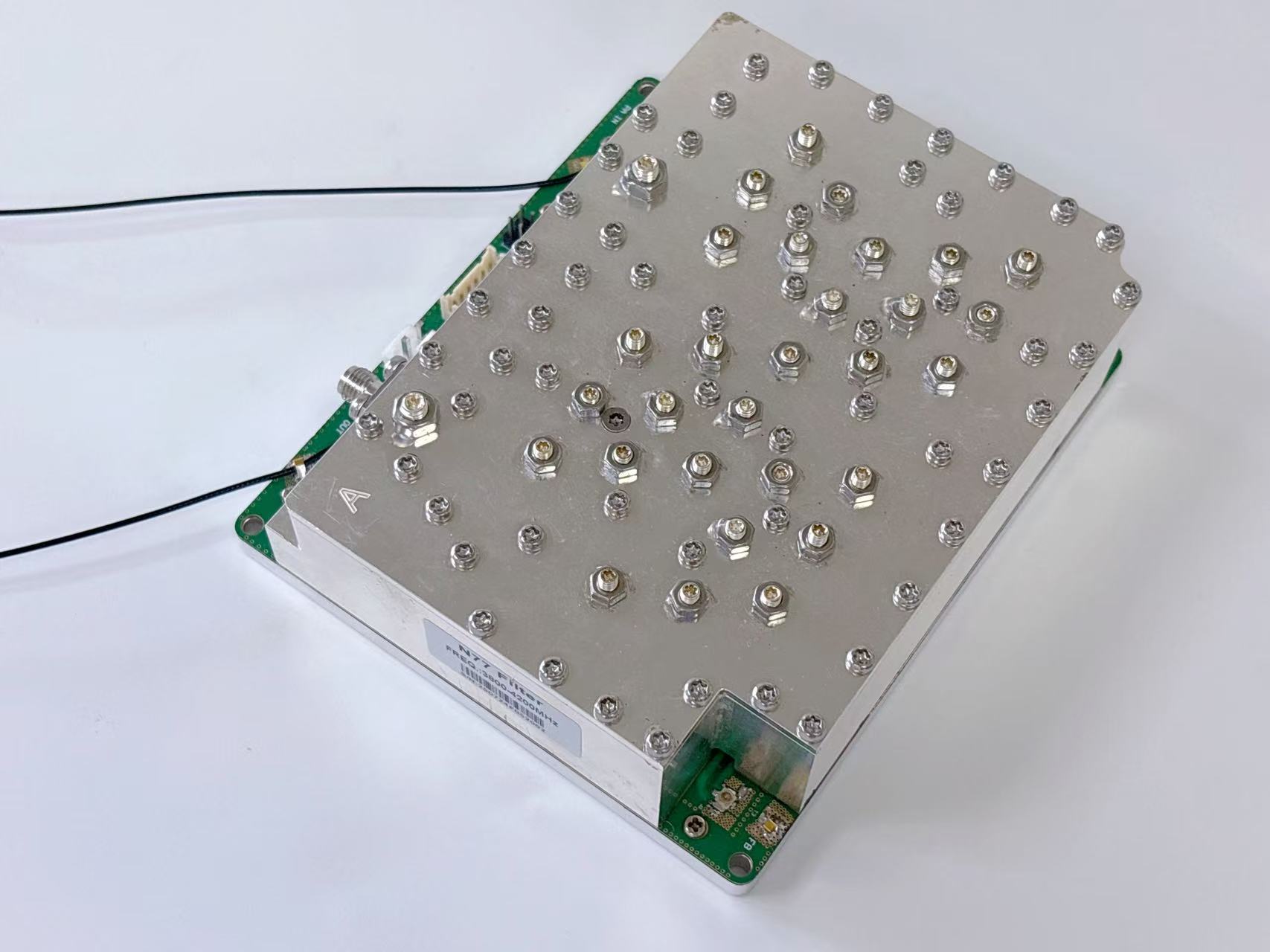

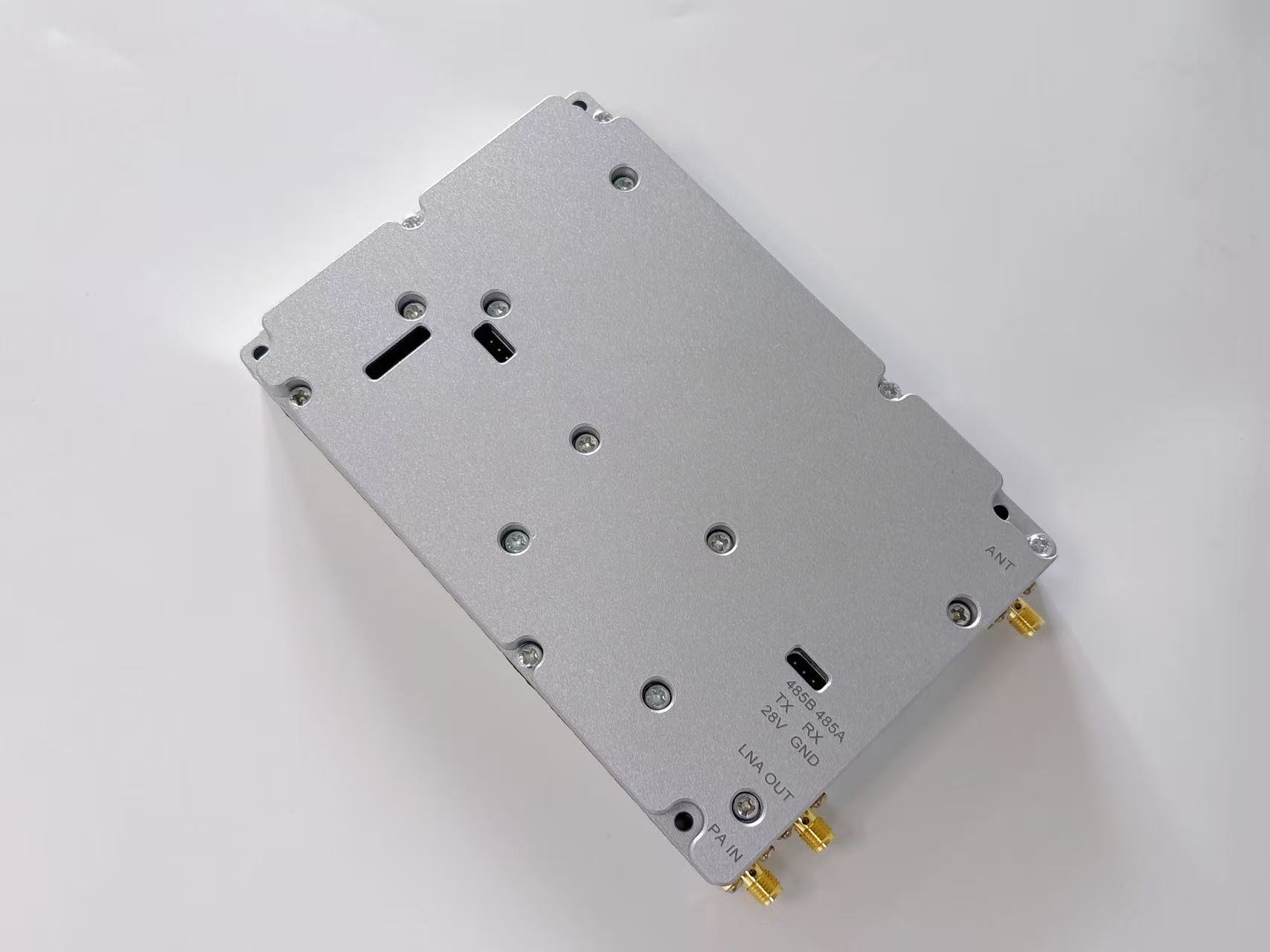

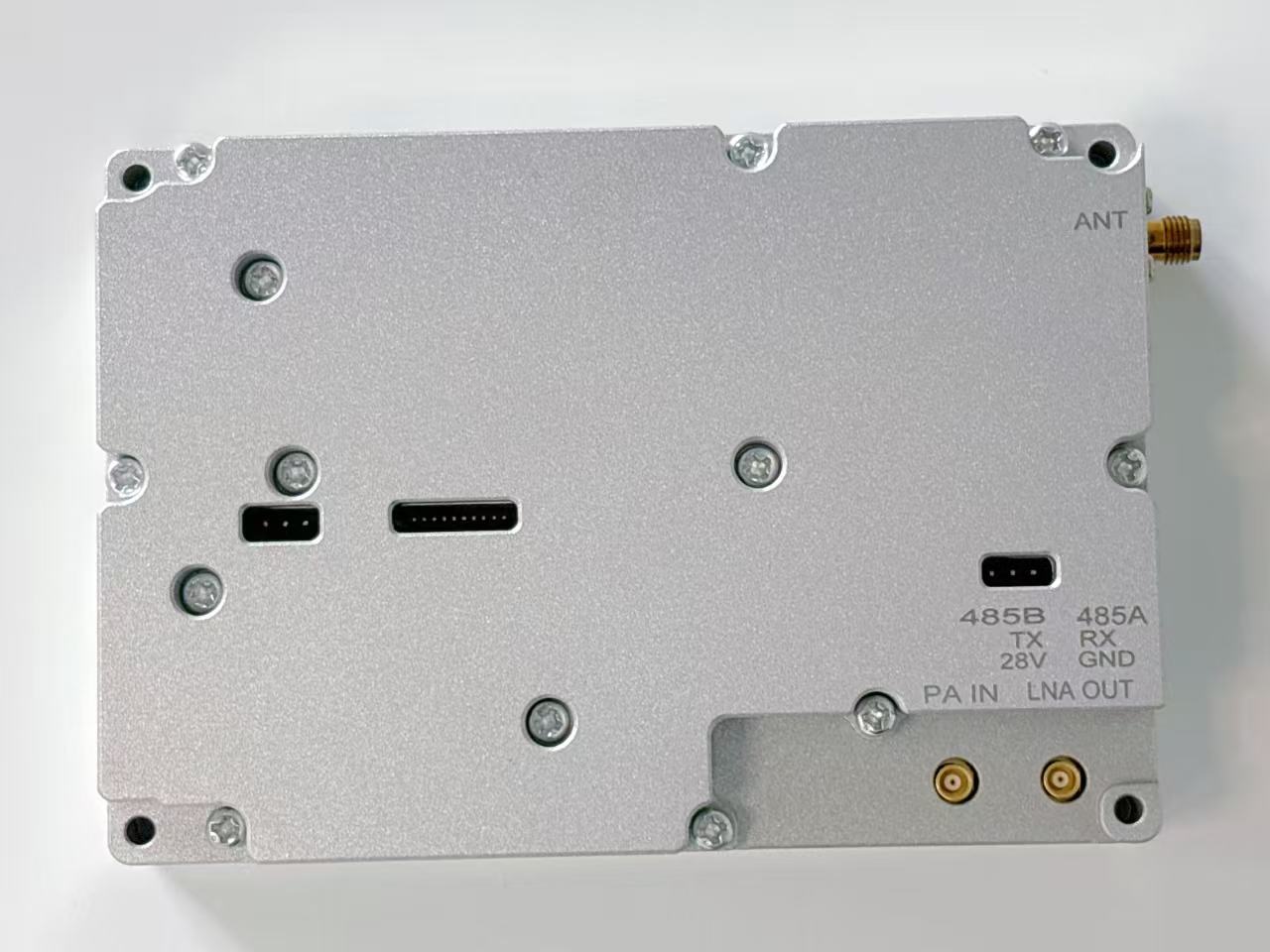

Uziwave 4G-FDD-80W-DUAL Power Amplifier

Features:
Engineered for continuous high-load operation – Maintains RF consistency and stability across full -40℃ to +55℃ ambient range, with autonomous thermal protection activating at +85℃ and resuming at +65℃.

Embedded diagnostics with active anomaly reporting – Continuously tracks power output, load mismatch (VSWR), internal temperature, and system faults, proactively notifying host systems via RS485 interface.

Dual-domain signal conditioning – Features independent ATT (≥25dB range) and ALC (≥10dB range) control on downlink, enabling precise output regulation and automatic over-power safeguarding.

Low-profile, high-density mechanical architecture – Optimized for space-constrained enclosures, combining dual-channel 80W capability with a 28V dual-wire power input and efficient current draw (≤9A with APD).

Modular frequency‑selective variants – Available across four FDD bands (B1/B3/B7/B8) within a unified 80W platform, simplifying integration for multi-band 4G base station and repeater systems.

Technical Specification:
Product Name:
1. UZI-FDD-B1-2.1G-80W-1510-Dual-28V
2. UZI-FDD-B3-1.8G-80W-1510-Dual-28V
3. UZI-FDD-B7-2.6G-80W-1510-Dual-28V
4. UZI-FDD-B8-900M-80W-1510-Dual-28V
Cautions:
1. 4G Standard Software for Power Amplifier
2. 28V Dual-Wire Power Supply Configuration

Model:
UZI-FDD-(B1,B3.B7,B8)-80W-1510-DUAL-28V
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

FDD Power Amplifier Electronic Fence Power Amplifier Mesh Network

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	B1: UL:1920-1980MHz DL:2110-2170MHz B3 UL:1710-1785MHz DL:1805-1880MHz B7 UL:2500-2570MHz DL:2620-2690MHz B8 UL:880-915MHz DL:925-960MHz
Max Gain:	UL:25±2dB DL:53±2dB
Maximum Output Power:	UL:Uncontrolled DL:49±1dBm
Maximum Input Level:	UL:NONE DL:+10dBm
Gain Adjustment Range:	UL:NONE DL:≥25dB
ALC Range:	UL:NONE DL:≥10dB
Gain Flatness:	UL:NONE DL ATT10dB： ≤±1dB ATT20dB： ≤±1dB ATT25dB： ≤±1.5dB
In-Band Ripple:	≤2.5dB
Noise Figure:	UL:≤3dB DL:NONE
Tx-Rx Isolation:	≥55dBc
EVM:	≤8% (Peak-to-Average Power Ratio 10.0dB)
VSWR:	UL:≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) UL:≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	28V DC, dual-wire power supply configuration
Operating Current:	With APD: ≤9A
Baud Rate:	9600
Working Temperature:	-40～+55℃
Over-Temperature Protection:	Alarm and shutdown at +85℃, resume operation at 65℃
Monitoring Functions:	For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication Settings: switch, gain; Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; Over-power alarm: alarm when the power exceeds the maximum output power by +2dB; Over-temperature alarm: recommended threshold is +85℃; alarm is triggered when the detected temperature exceeds +85℃, and the power amplifier is turned off simultaneously, then turned on at +65℃; Power amplifier temperature detection: the detection range shall include but not be limited to -25℃～+85℃, with a detection accuracy of ±3℃; Forward power detection: the detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB;
