Uziwave TDD 1.0-1.5G-5W -28V GaN Integrated Power Amplifier With Circulator Production Technology

- GaN integrated TDD power amplifier (5W) for ad-hoc networks, 1000-1500MHz frequency band, 28V power supply, with circulator and uplink filtering.
- Downlink: gain 42±2dB, max output power 37±1dBm; uplink: gain 10±2dB, noise figure ≤4dB, in-band ripple ≤4dB.
- Tx-Rx isolation ≥55dBc, EVM ≤5% (8dB PAPR), input/output VSWR ≤1.4 (downlink VSWR not tested).
- Compact size 110×70×18mm, 3 MCX connectors, CMOS 3.3V Tx-Rx control, no RS485 monitoring function.

Model:
UZI-TDD-1.0-1.5G-5W-117-28VGaN
Brand:
Uziwave

Quantity:
Availability:





Inquire

TDD Power Amplifier 28V Power Amplifier GaN Power Amplifier

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	UL:1000 MHz – 1500 MHz DL:1000 MHz – 1500 MHz
Max Gain:	UL:10 ± 2 dB DL:42 ± 2 dB
Maximum Output Power:	UL:Non-Controlled DL:37 ± 1 dBm
Maximum Input Level:	UL:None DL: -5 dBm
Gain Adjustment Range:	None
ALC Range:	None
Noise Figure:	≤ 4 dB
In-Band Ripple:	≤ 4 dB (Uplink with filtering)
Tx-Rx Isolation:	≥55dBc
EVM:	≤ 5 % @ PAPR 8 dB
VSWR:	≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	28V
Operating Current:	≤ 1.2 A
Working Temperature:	-40～+55℃
Tx-Rx Switch Control Interface:	CMOS 3.3 V

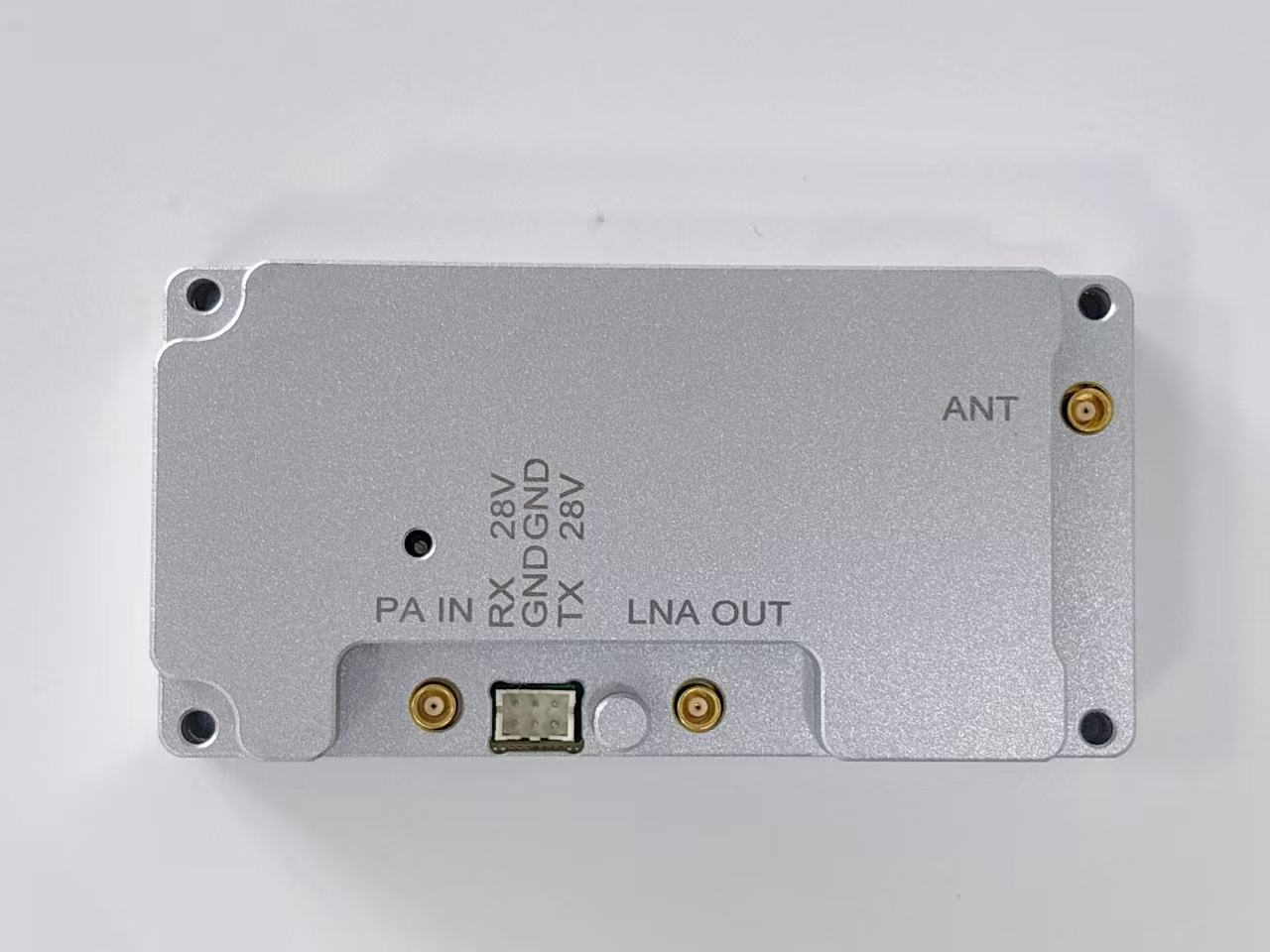

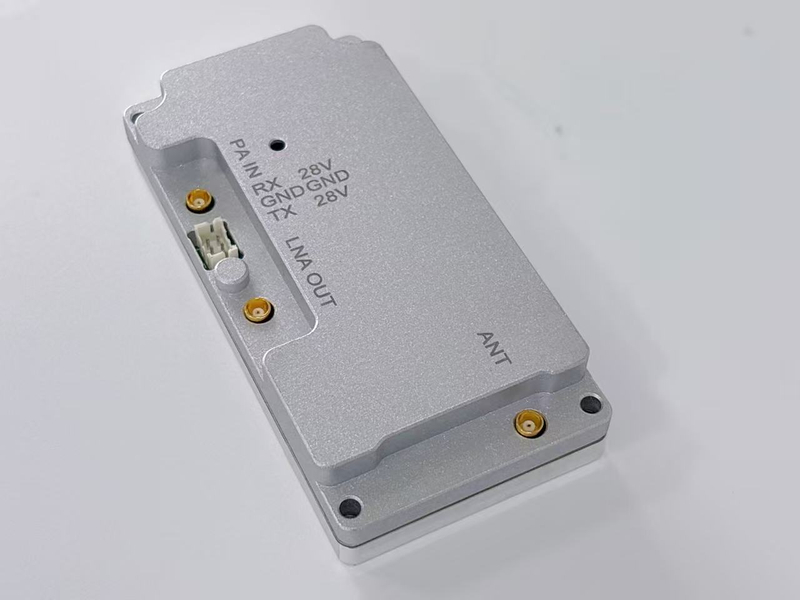

Connectors:	3 connectors, all MCX
Mechanical Dimensions:	110×70×18 mm
