UZI-TDD-260M~360M-10W-117-28V Cautions:
UZIWAVE
| Quantity: | |
|---|---|
Technical Specification:
Product Name:
1. UZI-TDD-260M~360M-10W-117-28V
Cautions:
1. TDD 10M signal; tested with a Peak-to-Average Power Ratio (PAPR) of 8dB
2. For ad-hoc network use
3. Uplink with added filtering
4. Over-temperature protection: Controlled by hardware with fixed thresholds - over- temperature shutdown at +85℃, restart at 65℃.

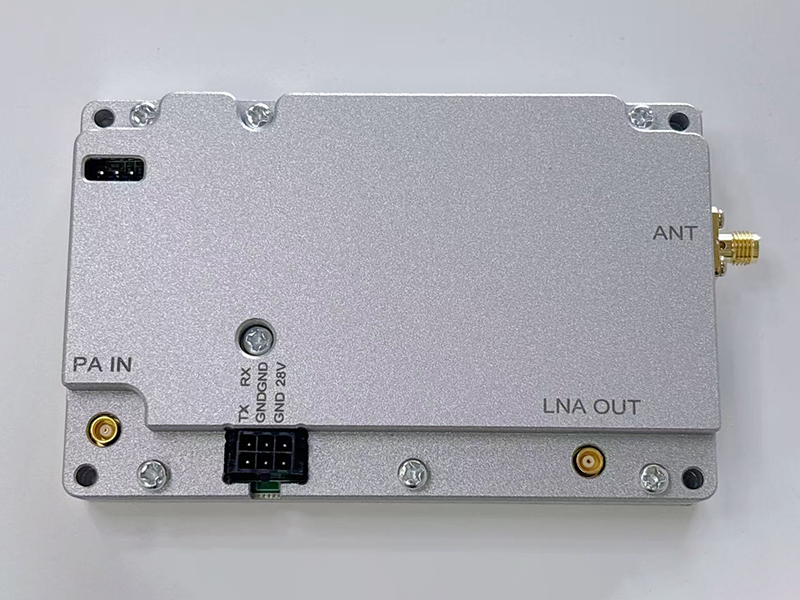

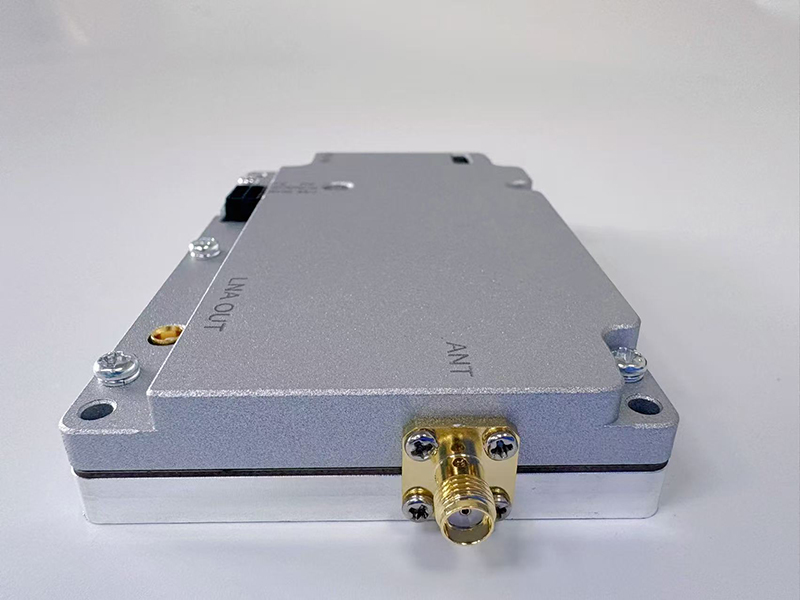

Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL:260MHz -360MHz 2. DL:260MHz -360MHz |
Max Gain: | 1. UL:10±2dB 2. DL:45±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:40±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-4dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:Uncontrolled |
In-Band Ripple: | ≤4dB |
Noise Figure: | 1. UL:≤3dB 2. DL:NONE |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) |
Operating Voltage: | 28V |
Operating Current: | ≤3.2A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Transmit-Receive Wire Control Interface: | CMOS 3.3V |
Connectors: | 3 connectors in total: PAIN/LNA OUT (MCX connector); ANT (SMA connector) |

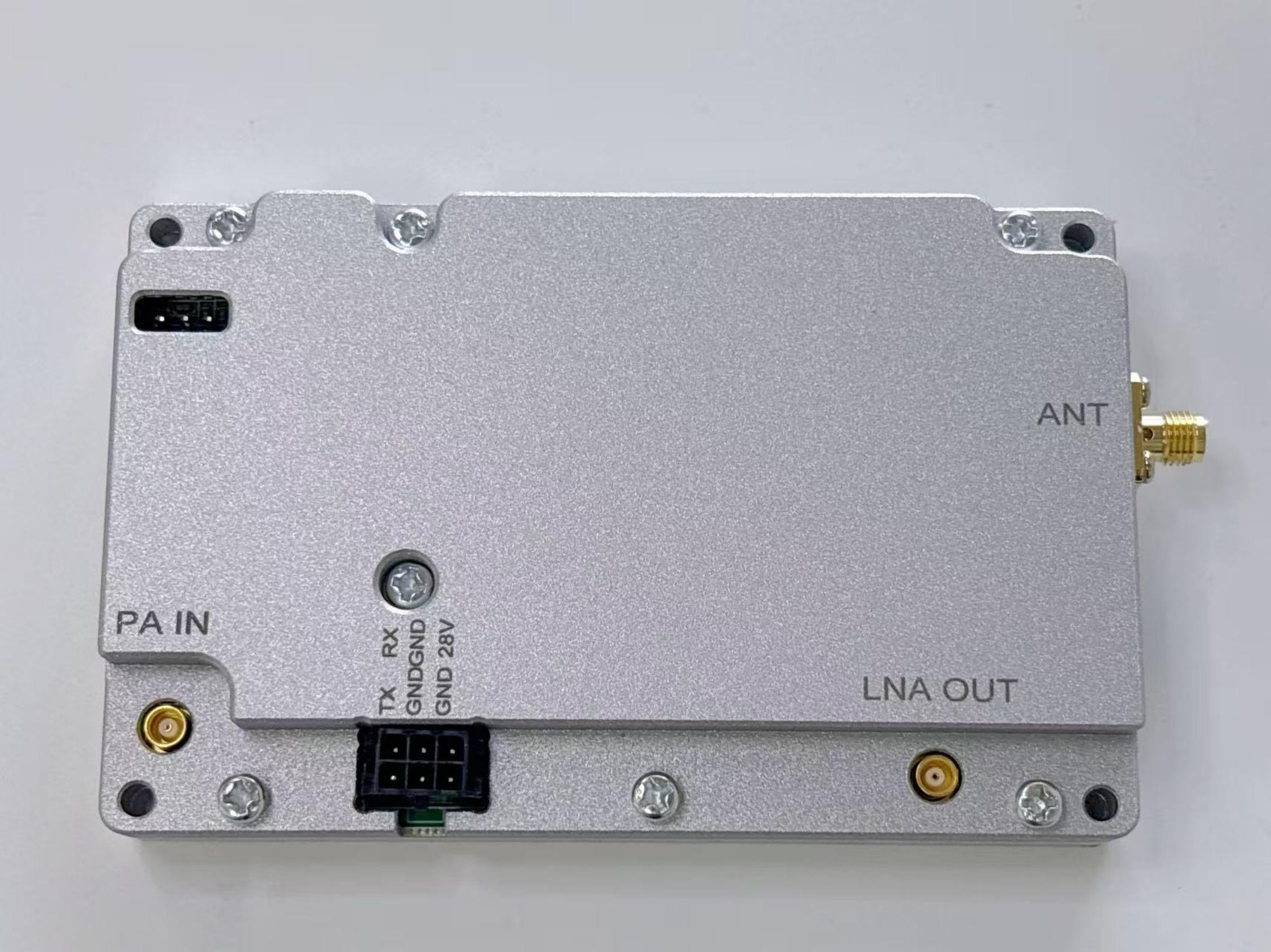

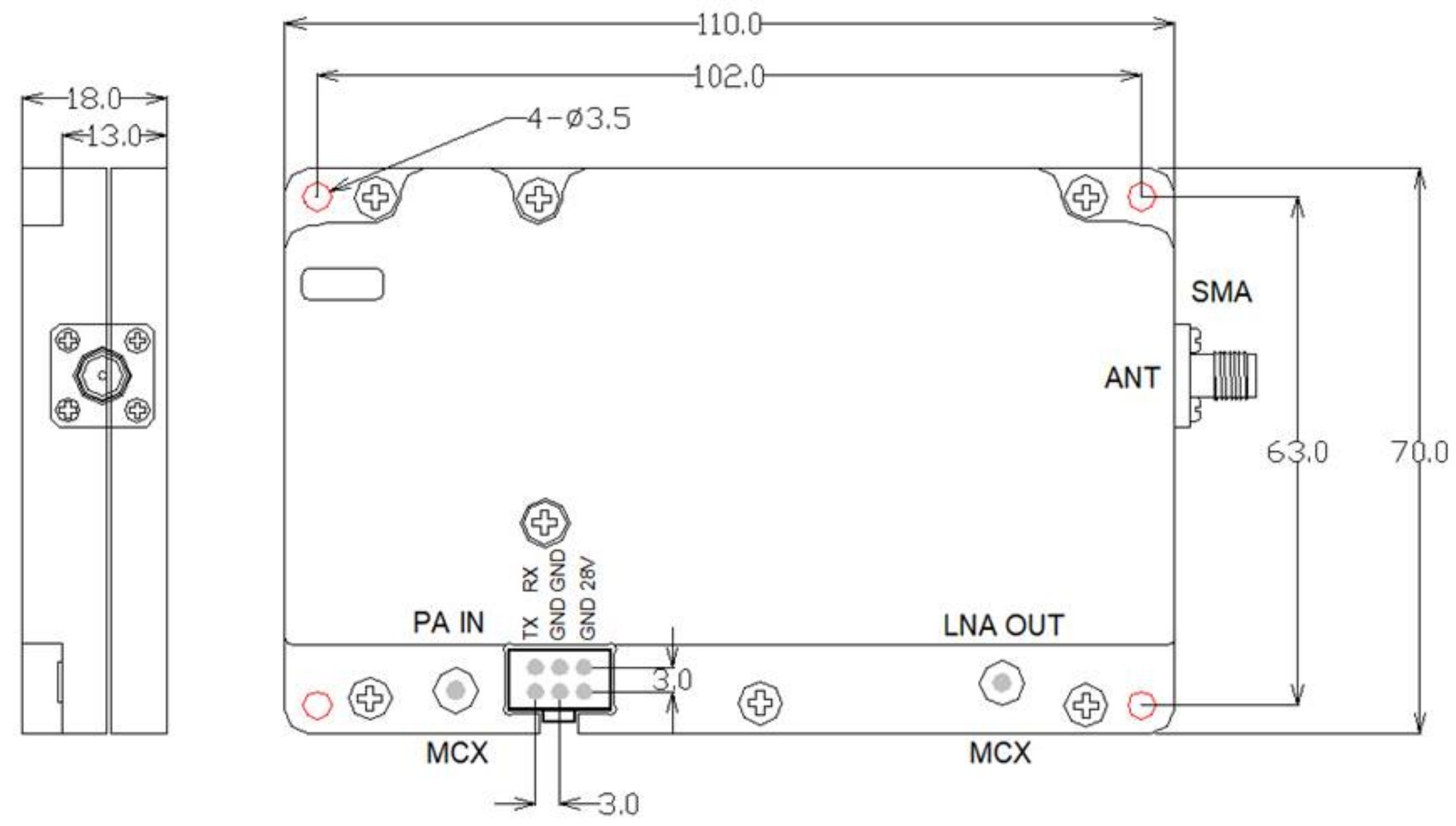

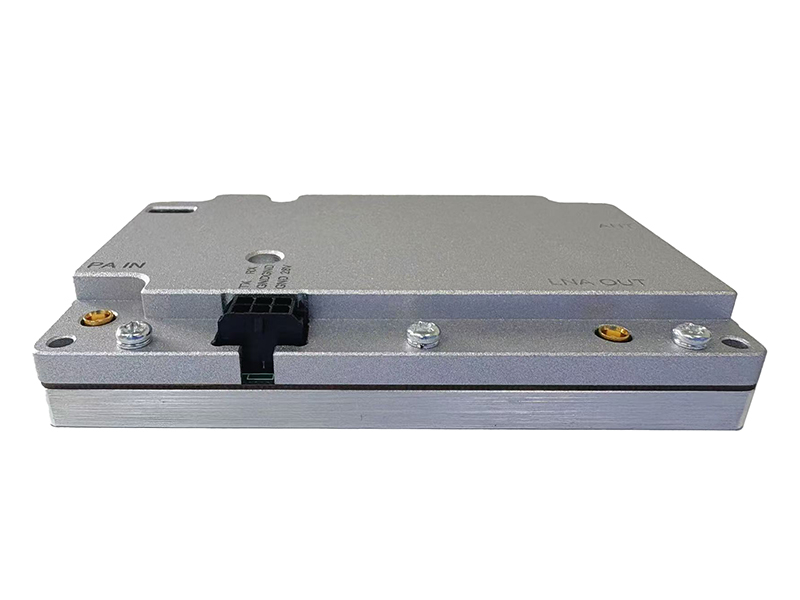

Mechanical Dimensions: | 110*70*18 |

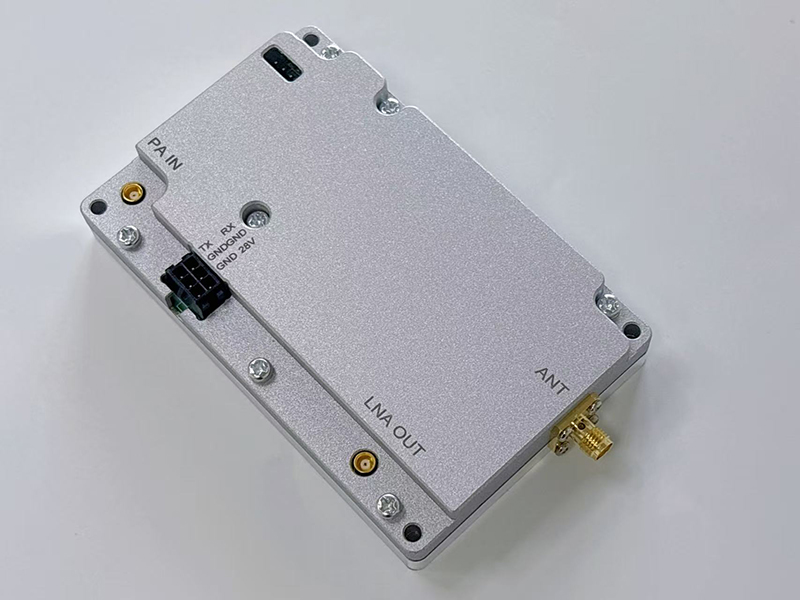

• RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
• TX: PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.
