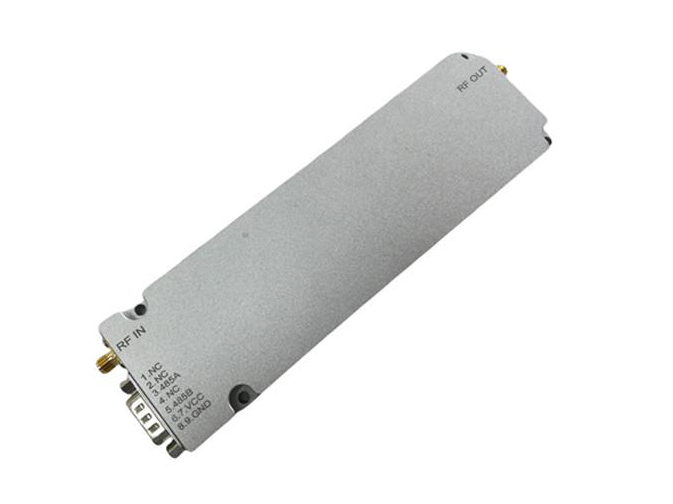

Uziwave Anti Drones Power Amplifier 2400-2500M 50W 28V Series

Features:
- High-power CW continuous wave output (50W) with stable performance across 2.4G/5.2G/5.8G bands
- Wide operating voltage range for enable control (ON: DC+3.0～+28V; OFF: DC 0～+0.5V), ensuring flexible system integration
- Precise gain control (37±1dB for 2.4G; 42±1dB for 5.2G&5.8G) and robust input power tolerance, suitable for harsh working environments
Technical Specification:
Product Name:
1. UZI-Anti-2400~2500M-50W-11238-EN
2. UZI-Anti-5100~5300M-50W-11238-EN
3. UZI-Anti-5700~5950M-50W-11238-EN
Cautions
1. CW Continuous wave signal
2. Enable： ON:DC+3.0～+28V； OFF：DC 0～+0.5V

Model:
UZI-Anti-(2400-2500M;5100-5300M;5700-5900M)-50W-11238EN
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

RF Repeater FDD Power Amplifier TDD Power Amplifier Anti-Drone Power Amplifier Electronic Fence

Product Description

Specification： Anti Drones Power Amplifier

size：112*38mm Power Supply：28V ( CW Continuous wave signal)

NO.1： PA-2400-2500M 50W Model：Anti-2400~2500M-50W-11238-EN NO.2： PA-5100-5300M 50W Model：Anti-5100~5300M-50W-11238-EN NO.3： PA-5700-5950M 50W Model：Anti-5700~5950M-50W-11238-EN
1、CW Continuous wave signal 2、Enable： ON:DC+3.0～+28V； OFF：DC 0～+0.5V。
	1	ax. Gain	2.4G：37±1dB， 5.2G和5.8G：42±1dB
	2	Output Power	47±1dBm
	3	Max. Input Power Without Damage	2.4G：+15dBm， other：+10dBm
	4	Automatic Gain Control	-- --
	5	Manual Gain Control	Not required
