UZI-TDD-2.4~2.5G-5W-127110ZK-4JT-(16-36)V-MIMO-SMA Power Amplifier

Features:

• Stable Frequency & Uplink Performance: Operating in 2400MHz-2500MHz range, it has uplink filter design with in-band ripple ≤3.5dB and noise figure ≤4dB for clear signal.

• Precise Gain Performance: Max gain reaches 12±2dB, with MIMO dual-channel gain deviation ≤1dB to ensure balanced signal amplification.

• Reliable Working Parameters: Powered by 24V voltage, operating current ≤2.6A, and equipped with over-temperature protection (shutdown at 85℃, resume at 65℃).

• Excellent RF & Testing Safety: Tx-Rx isolation ≥55dBc, EVM ≤7% (PAR=10.0dB), VSWR ≤1.4 with specified safe testing conditions to protect instruments.

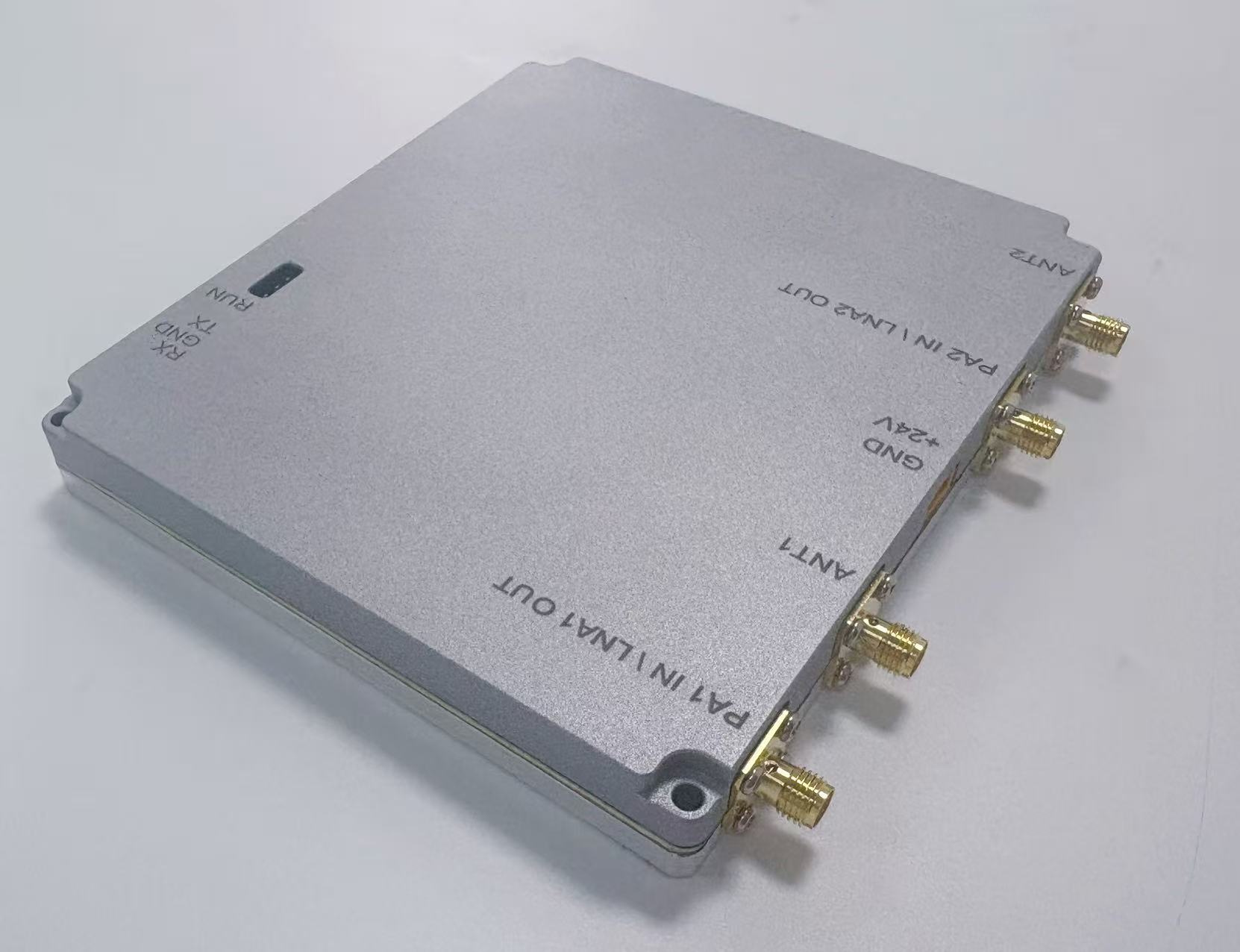

• Compact & Standard Interface: With 4 SMA connectors and mechanical dimensions of 127*110*16, it is compact and easy to install.

Technical Specification:

Product Name:

Cautions：

1. Source bandwidth: 10MHz

2. For ad-hoc network application

3. No monitoring function

4. Filter added to uplink

5. ALC non-controlled

6. With power management; Power supply range: 16-36V(1) All indicators shall pass the test at 24V.(2) Power, gain, EVM and uplink/downlink VSWR shall pass the test at 16V and 36V.

7. MIMO two-channel gain deviation: ≤1dB

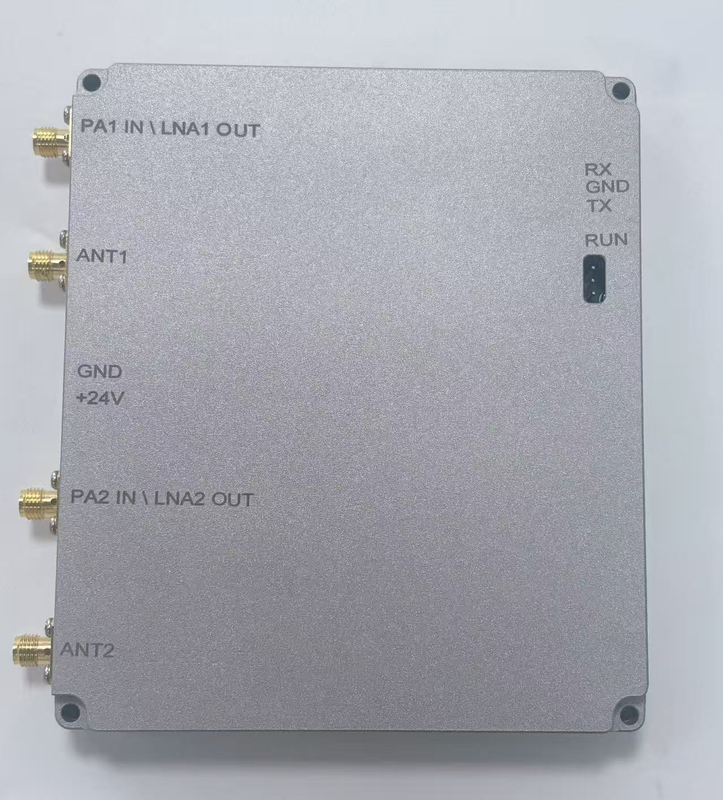

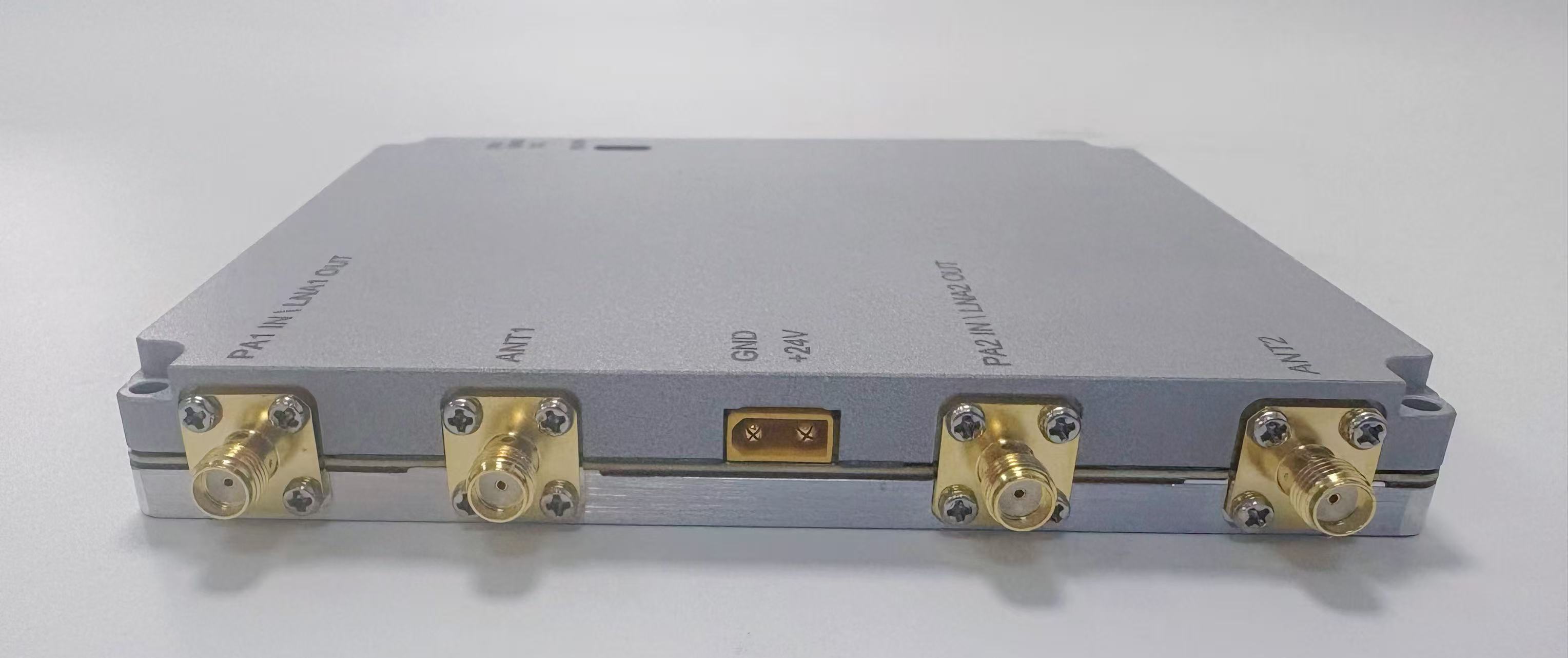

8. RF connectors: 4 SMA connectors in total.Model code 4JT indicates that PAIN and LNAOUT are combined and share one connector.

9. High and low temperature test: -25～+60℃

10. Overtemperature protection: Hardware-controlled with fixed parameters; Shutdown at +85℃, recovery at 65℃.
