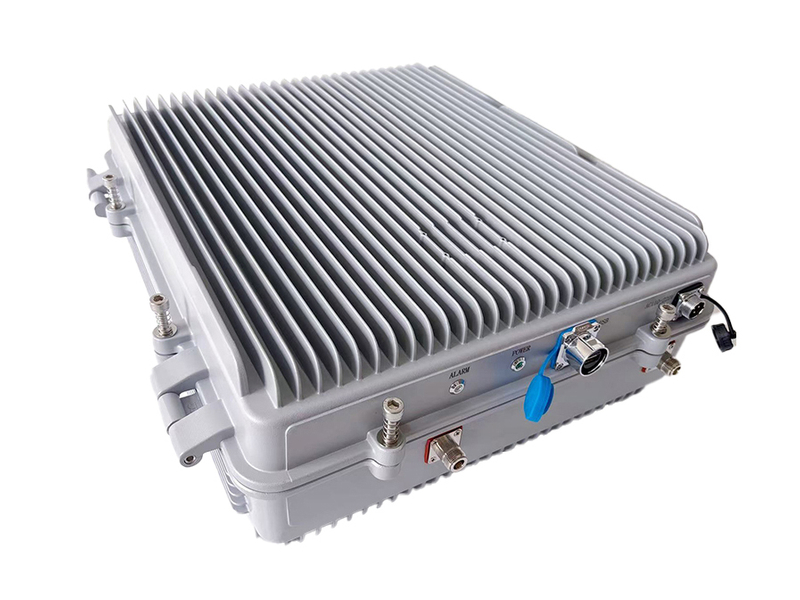

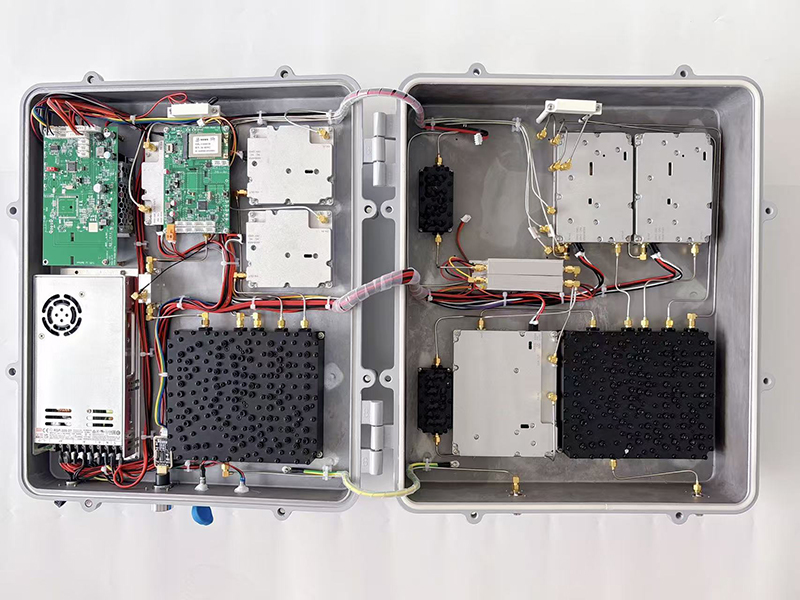

Frequency Range:

1.   B3 (Band With 65 MHz):

a.   UL:1710 MHz - 1775 MHz

b.  DL:1805 MHz - 1870 MHz

2.   B1

a.   UL:1920 MHz - 1980 MHz

b.  DL:2110 MHz - 2170 MHz

3.   N78

a.   UL:3300 MHz - 3570 MHz

b.  DL:3300 MHz - 3570 MHz

Maximum Output Power:

1.   UL:30±1dBm

2.   DL:37±1dBm

Maximum Input Level:

1.   UL:0dBm

2.   DL:0dBm

Gain Adjustment Range:

1.   UL:≥25dB

2.   DL:≥25dB

ALC Range:

1.   UL:≥10dB

2.   DL:≥10dB

ICS Self-oscillation   Cancellation Degree (for B1 & B3):

1.   UL:≥ 25 dB

2.   DL:≥ 25 dB

ICS (for B1 & B3):

1.   UL:Configured

2.   DL:Configured

Gain Flatness:

1.  UL:

a.  ATT10dB： ≤±1dB

b.  ATT20dB： ≤±1dB

c.  ATT25dB： ≤±1.5dB

2.  DL

a.  ATT10dB： ≤±1dB

b.  ATT20dB： ≤±1dB

c.  ATT25dB： ≤±1.5dB

In-Band Ripple:

1.   UL:≤5dB

2.   DL:≤5dB

Out-of-band Rejection (for B1 & B3):

•   0.2 ≤ f_offset_CW < 1.0 MHz: Total Net Gain ≤ 60 dB

•   1.0 ≤ f_offset_CW < 5.0 MHz: Total Net Gain ≤ 45 dB

•   5.0 ≤ f_offset_CW < 10.0 MHz: Total Net Gain ≤ 45 dB

•   10.0 MHz ≤ f_offset_CW: Total Net Gain ≤ 35 dB

Noise Figure:

1. UL:≤6dB

2.   DL:≤6dB

EVM:

≤6%

VSWR:

1.   UL:≤1.5:1

2.   DL:≤1.5:1

ACPR:

1.   UL:

•   B1 & B3: ≤ -45 dBc

•   N78: ≤ -41 dBc

2.   DL:

•   B1 & B3: ≤ -45 dBc

•   N78: ≤ -43 dBc

Operating Temperature:

-25℃ ~ +55℃

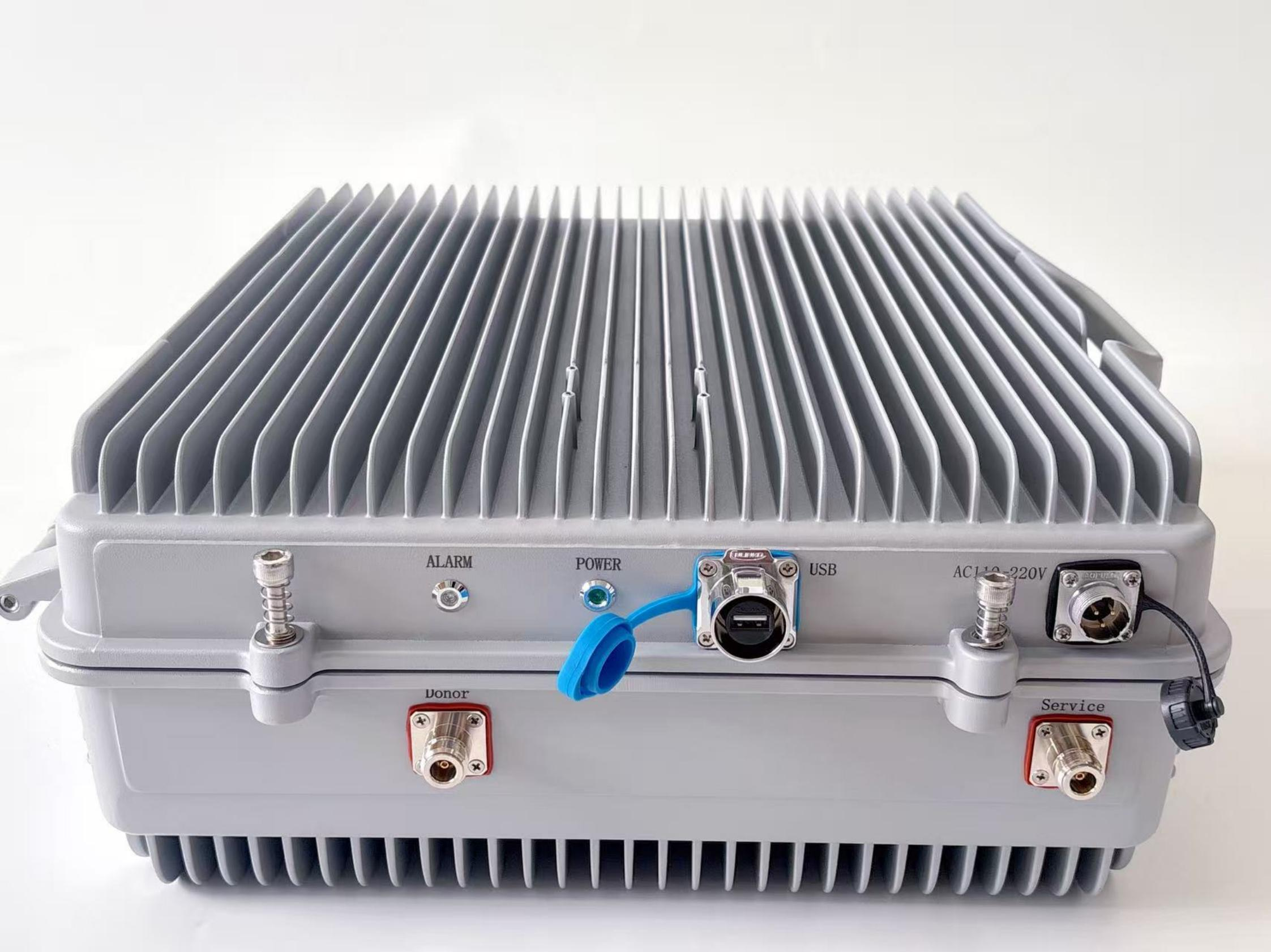

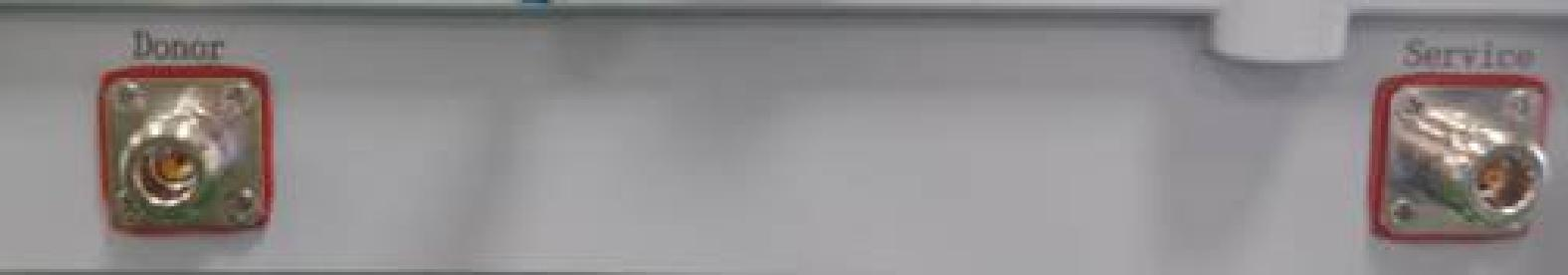

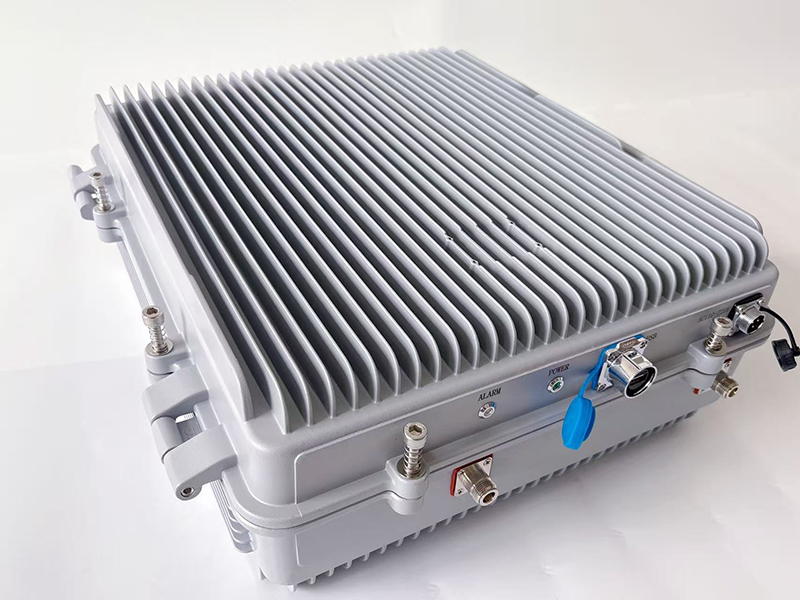

Connector Model:

2 units of N-Female/50 Ω connectors, mounted on the same side of the chassis

External Chassis Indicator Lights:

Total of 2 indicators:

•   Power Indicator: 12V, green

•  Alarm Indicator: 3.3V, dual-color

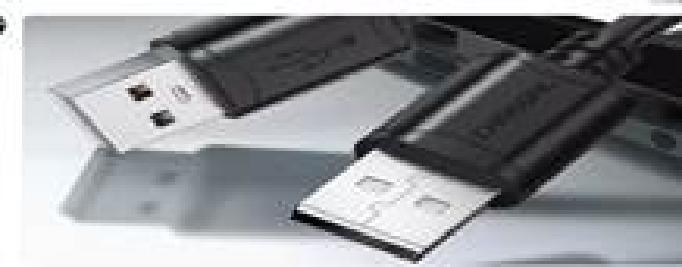

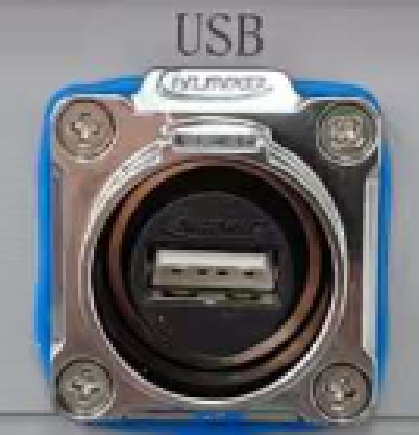

Local Monitoring USB Port:

The local monitoring port on the chassis is a USB port. Each device is equipped with 2 data cables at the time of factory shipment

Power Supply:

AC110-220V

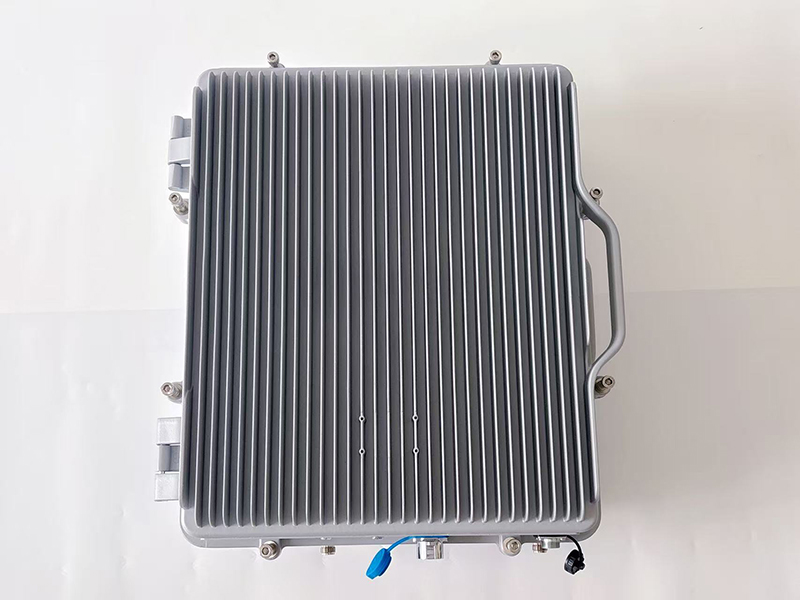

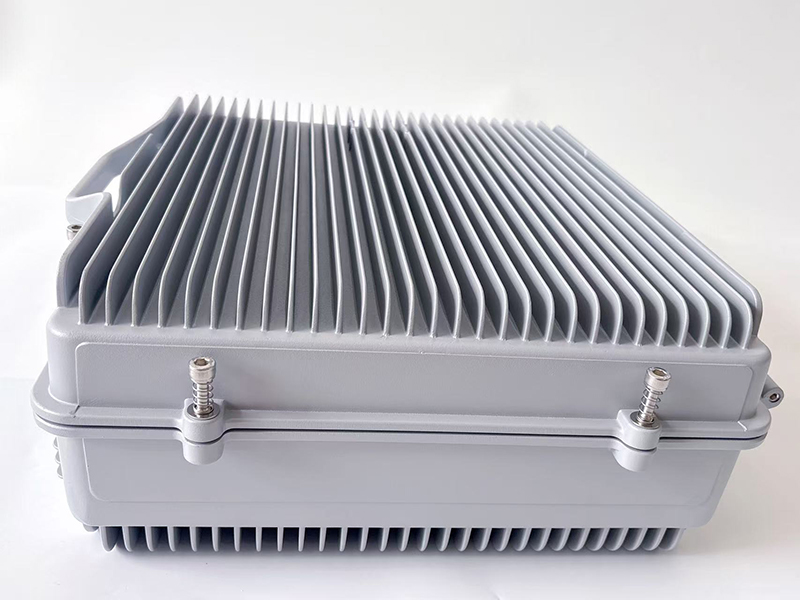

Chassis Dimensions:

500*440*187mm

Weight

≤30kg

Monitoring & Modem

•   Local monitoring: USB interface

Functions:

•   Remote monitoring: via MODEM or RJ45 interface
