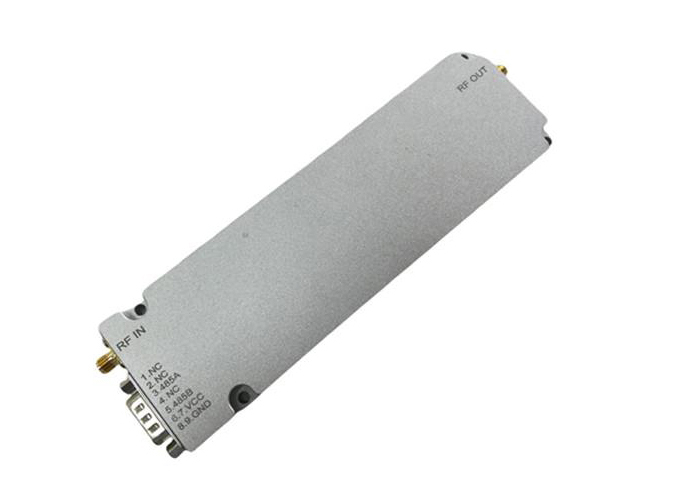

Uziwave TDD 28V Multi Band Series POWER Amplifier

Features:
TDD mid-power booster design – Delivers 25W (44±1dBm) downlink output at 28V with ≤2.5A operating current, balancing coverage and power efficiency.

Independent CMOS TDD switching – Separate 3.3V logic controls for RX/LNA (uplink) and TX/PA (downlink), enabling precise synchronization with TDD frame timing.

Wideband TDD band support – Available for B34 (2.0GHz), B39 (1.9GHz), and B40 (2.3GHz) with in-band ripple ≤2.5dB (B40) or ≤2dB (others).

Real-time monitoring with 19200 baud RS485 – Queries module status, forward power (±1dB accuracy), temperature (±3°C), and triggers alarms for over-power (+2dB) or over-temperature (85°C shutdown / 65°C resume).

Integrated ATT & ALC control – Downlink gain adjustment ≥25dB and ALC range ≥10dB, with active fault reporting for power, VSWR, and temperature anomalies.
Technical Specification:
Product Name:
1. UZI-TDD-B39-1.9G-3W-109-28V
2. UZI-TDD-B40-2.3G-3W-109-28V
3. UZI-TDD-B41-3W-109-28V

Model:
1. UZI-TDD-(B39,B40,B41)-1.9G-3W-109-28V

Quantity:
Availability:





Inquire

TDD Power Amplifier 28V Power Amplifier Mesh Network Power Amplifier

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	B39: UL:1880MHz -1920MHz DL:1880MHz -1920MHz B40 UL:2300MHz -2400MHz DL:2300MHz -2400MHz B41 UL:2496MHz -2690MHz DL:2496MHz -2690MHz
Max Gain:	UL:15±2dB DL:40±2dB
Maximum Output Power:	UL:Uncontrolled DL:35±1dBm
Maximum Input Level:	NONE DL:+10dBm
Gain Adjustment Range:	UL:NONE DL:≥25dB
ALC Range:	UL:NONE DL:≥10dB
Gain Flatness:	UL:NONE DL ATT10dB： ≤±1dB ATT20dB： ≤±1dB ATT25dB： ≤±1.5dB
In-Band Ripple:	≤2.5dB
Noise Figure:	UL:≤3dB DL:NONE
Tx-Rx Isolation:	≥55dBc
EVM:	≤5% (Peak-to-Average Power Ratio 10.0dB)
VSWR:	≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	28V
Operating Current:	≤1.2A
Baud Rate:	19200
Working Temperature:	-40～+55℃
Over-Temperature Protection:	Alarm and shutdown at +85℃, resume operation at 65℃
Transmit-receive wire control interface:	CMOS3.3V

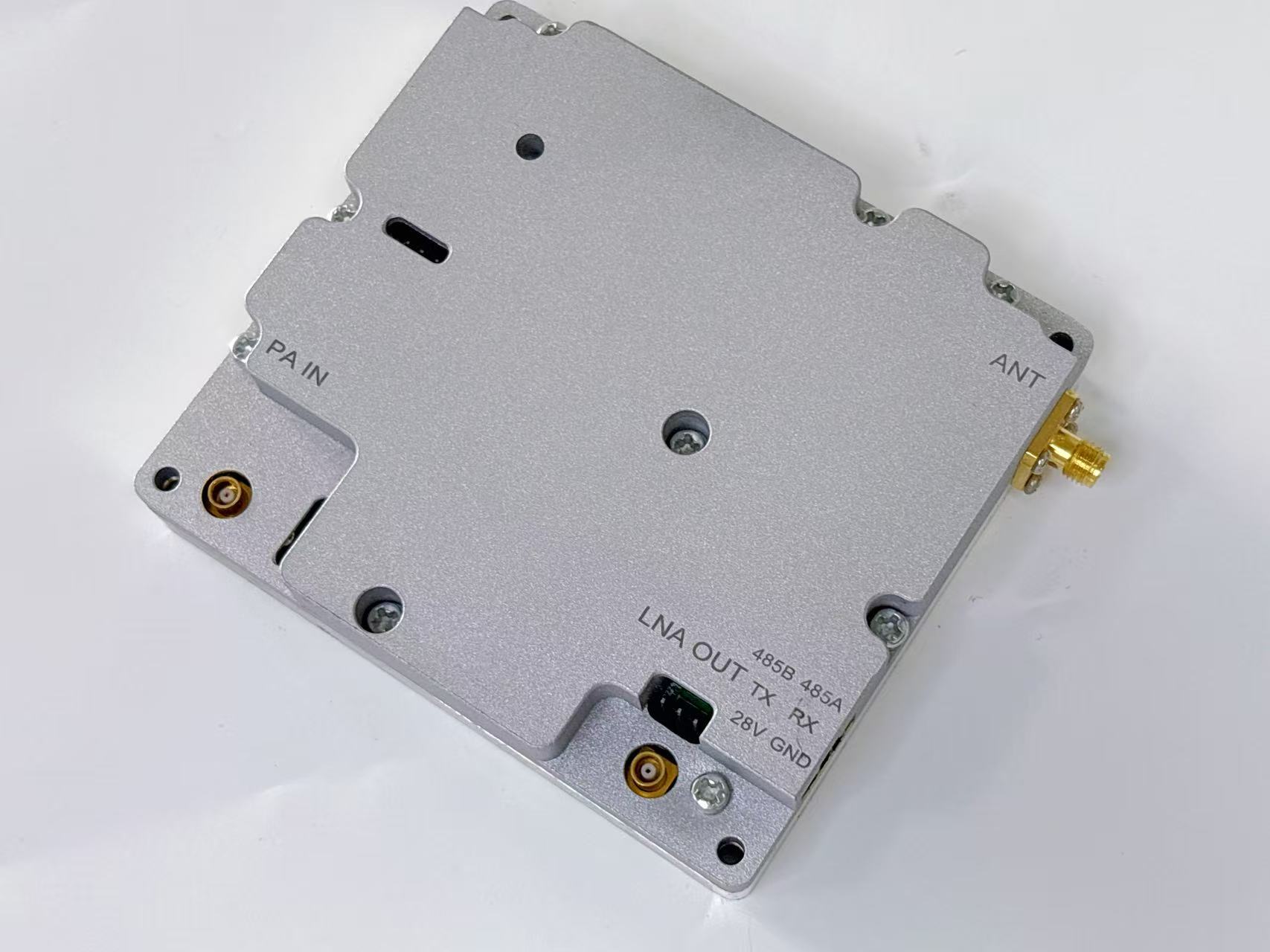

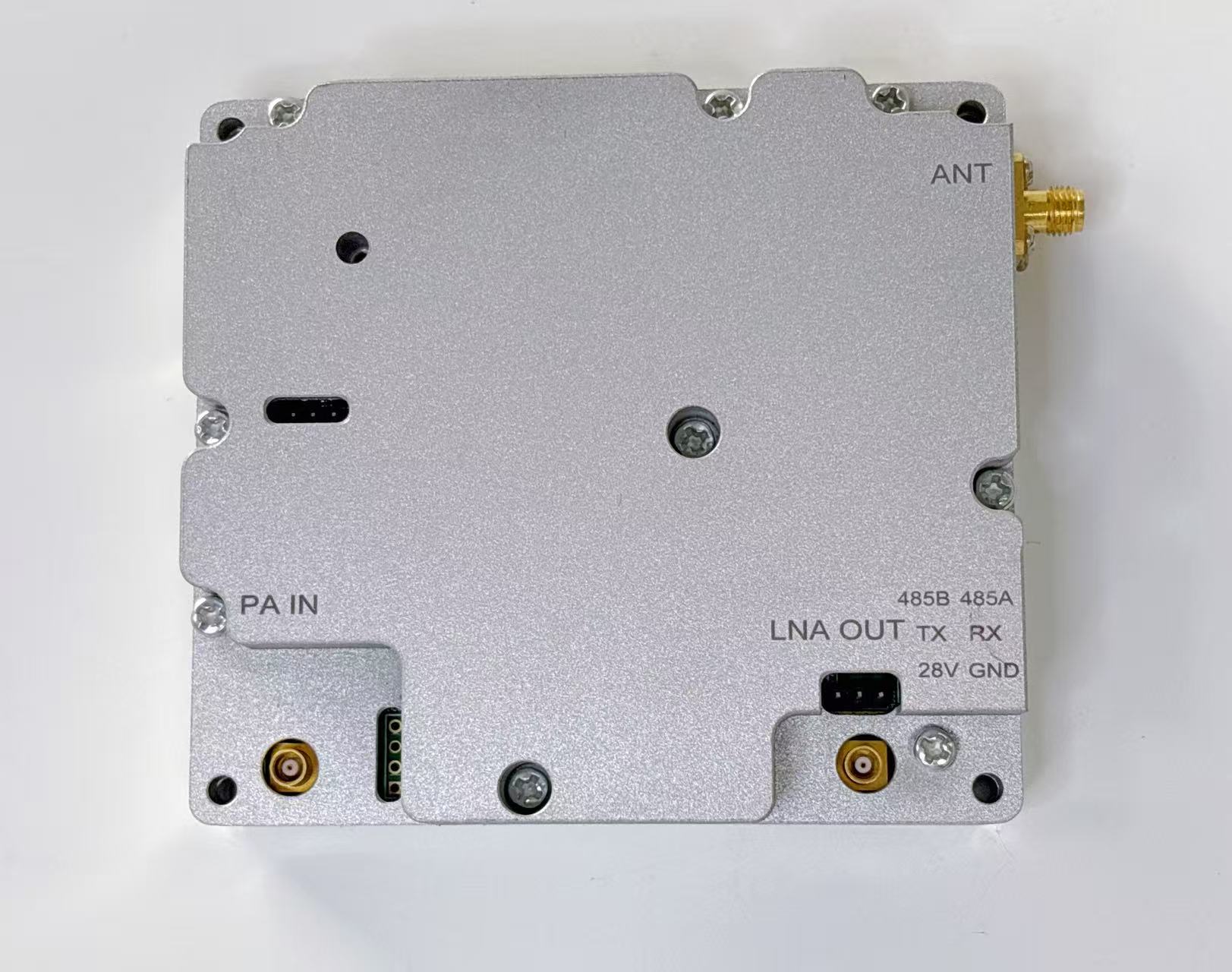

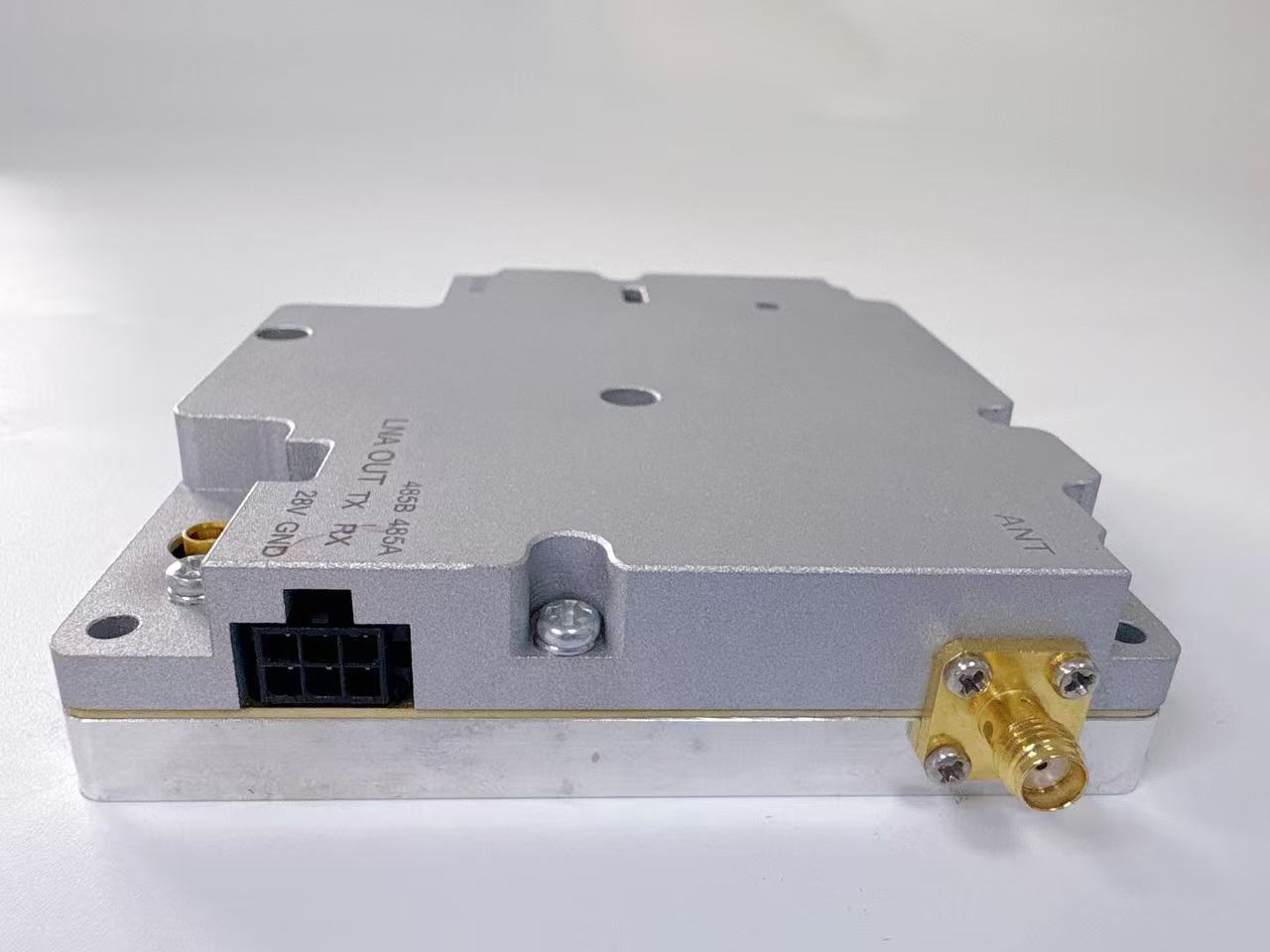

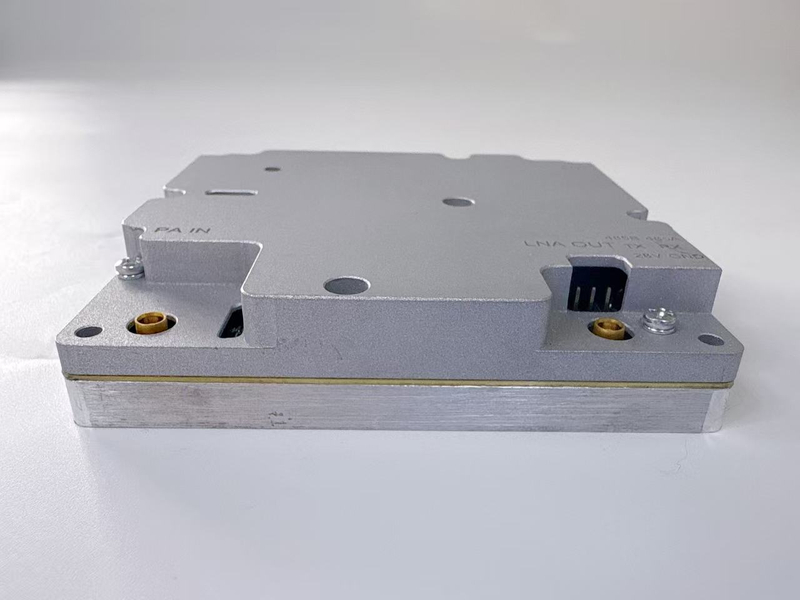

Connecter:	3 connectors in total; ANT: SMA connector; PA IN/LNA OUT: MCX connector
Amplifier Dimensions:	1009022
Monitoring Functions:	For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication Setting: switch, gain; Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; Over-power alarm: alarm triggered when power exceeds maximum output power by +2dB; Over-temperature alarm: recommended threshold is +85℃; alarm triggered when detected temperature exceeds +85℃, with the power amplifier turned off simultaneously and turned on again at +65℃; Power amplifier temperature detection: detection range shall include but not be limited to -25℃～+85℃, with a detection accuracy of ±3℃; Forward power detection: detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB;
