Frequency Range: | UL:1300-1500MHz DL:1300-1500MHz
|
Max Gain: | UL:10±2dB DL:45±2dB
|
Maximum Output Power: | UL:Uncontrolled DL:40±1dBm
|
Maximum Input Level: | UL:NONE DL:-2dBm
|
Gain Adjustment Range: | NONE |
ALC Range: | NONE |
In-Band Ripple: | ≤2.5dB |
Noise Figure: | UL:≤3dB DL:NONE
|
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤3.5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | UL: ≤1.4 DL:NONE
|
Operating Voltage: | 28V |
Operating Current: | ≤1.8A |
Working Temperature: | -40～+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Transmit - receive wire control interface: | CMOS3.3V |

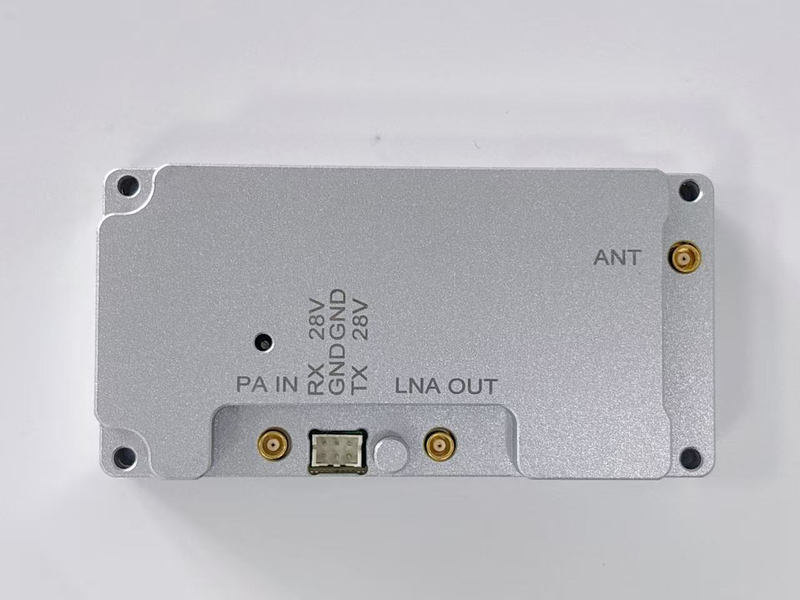

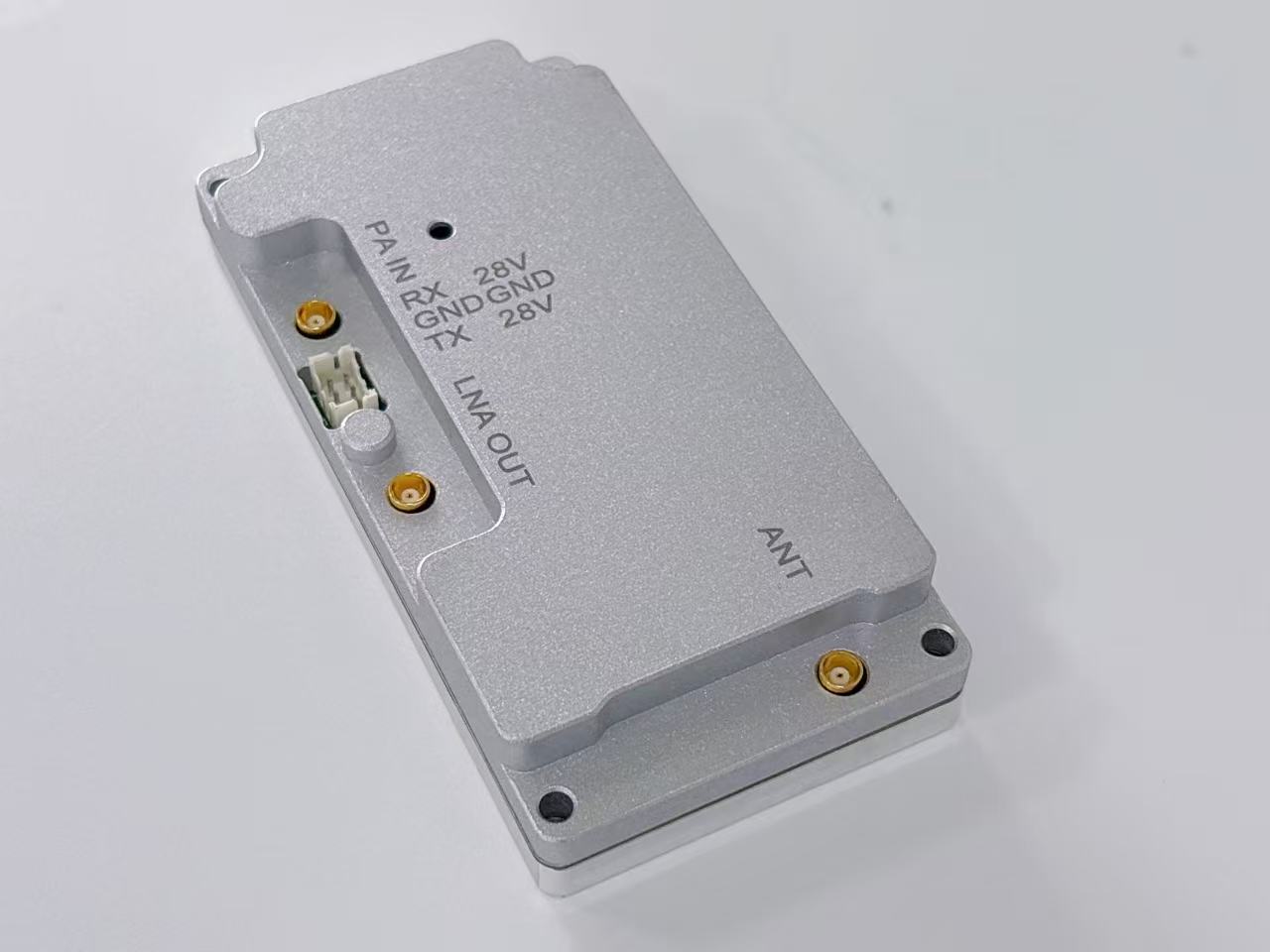

Connecters: | There are 3 connectors in total: PA IN: MCX connector; The remaining ones: SMA connectors |
Mechanical Dimensions: | 100*50*18 |
