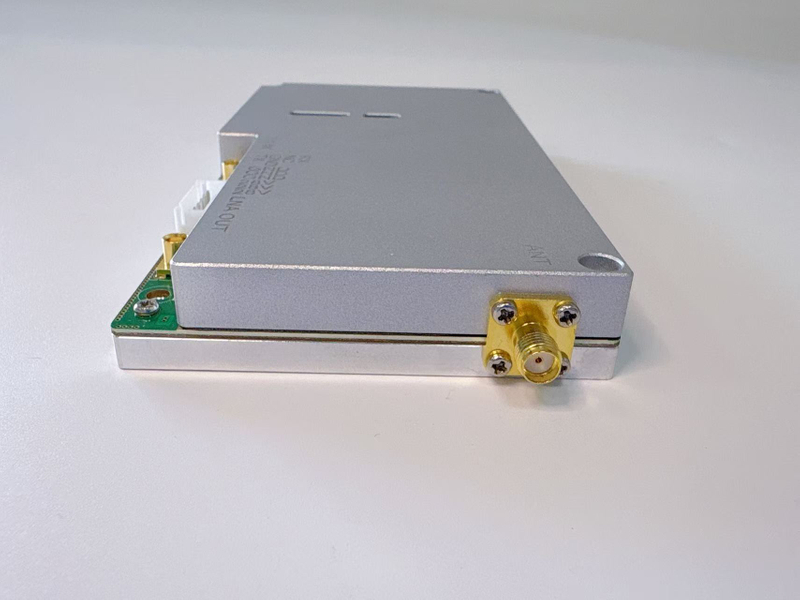

Uziwave FDD-2W-13255-DI-MCX Power Amplifier

Features:
- High reliability, stability and consistency
- Small size and low power consumption
- Equipped with power, VSWR, temperature and fault detection functions, as well as active fault reporting capability
- With ATT and ALC control functions
- Complete product series with comprehensive power levels to meet different application requirements
Technical Specification:
Product Name:
1. UZI-FDD-N28-700M-2W-13255-DI-MCX
2. UZI-FDD-B5-800M-2W-13255-DI-MCX
3. UZI-FDD-B8-900M-2W-13255-DI-MCX
4. UZI-FDD-B3-1.8G-2W-13255-DI-MCX
5. UZI-FDD-B1-2.1G-2W-13255-DI-MCX

Model:
UZI-FDD-(B1,B3,B5,B8,N28)-2W-13255-DI-MCX
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

FDD Power Amplifier Electronic Fence Power Amplifier Mesh Network

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	N28: UL:703-748MHz DL:758-803MHz B5 UL:824-849MHz DL:869-894MHz B8 UL:890-915MHz DL:935-960MHz B3 UL:1710-1785MHz DL:1805-1880MHz B1 UL:1920-1980MHz DL:2110-2170MHz
Max Gain:	UL:15±2dB DL:39±1dB
Maximum Output Power:	UL:Uncontrolled DL:33±1dBm (with dielectric duplexer)
Maximum Input Level:	UL:NONE DL:-5dBm
Gain Adjustment Range:	UL:NONE DL:NONE
ALC Range:	UL:NONE DL:NONE
In-Band Ripple:	UL:≤4dB DL:≤4dB
Noise Figure:	UL:≤6dB DL:NONE
EVM:	≤5% (Peak-to-Average Power Ratio 10.0dB)
VSWR:	≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	28V (power supply connector facing the side)
Operating Current:	≤1.5A
Working Temperature:	-40～+55℃
Over-Temperature Protection:	Alarm and shutdown at +85℃, resume operation at 65℃
Monitoring Functions:	NONE

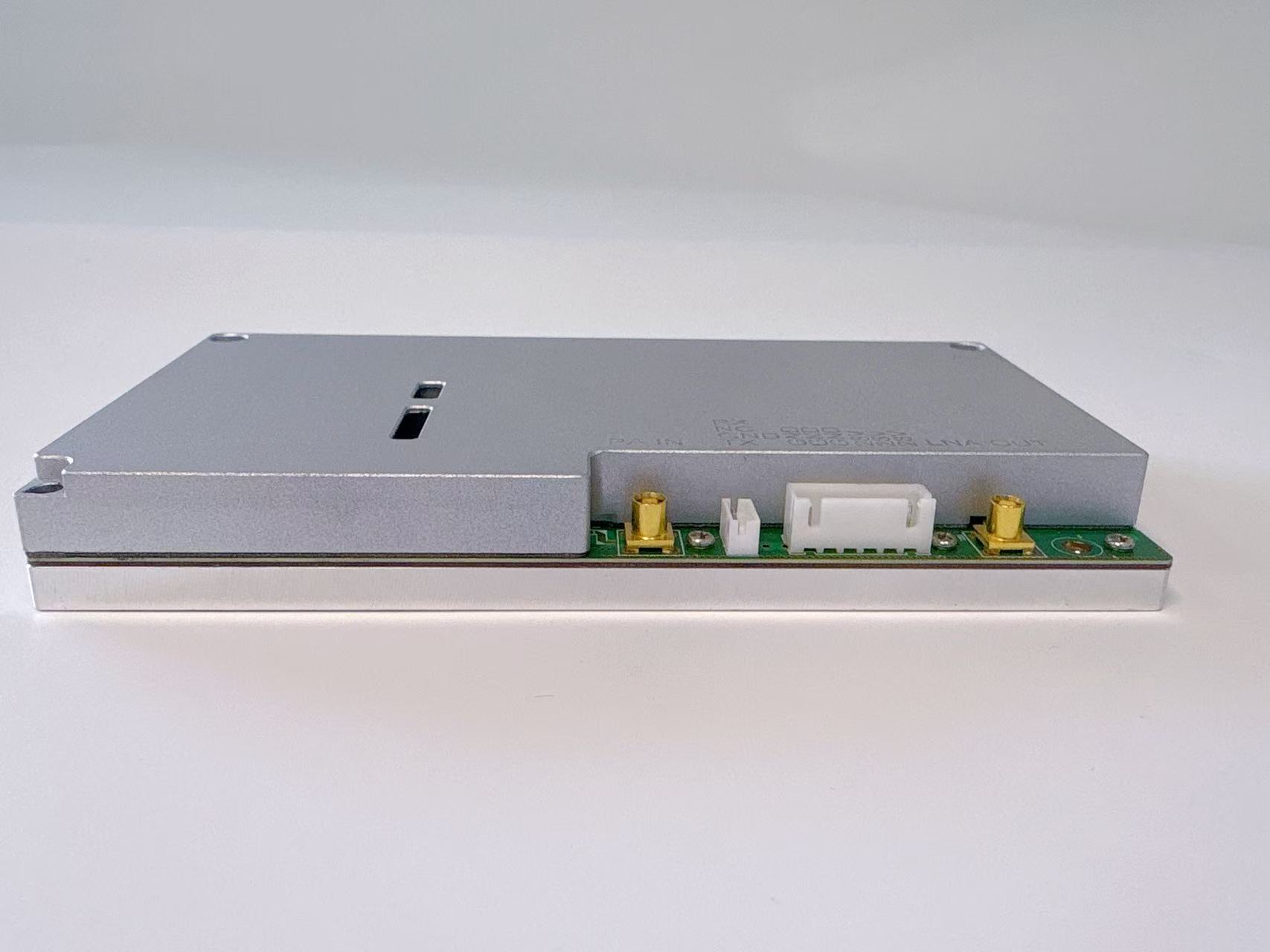

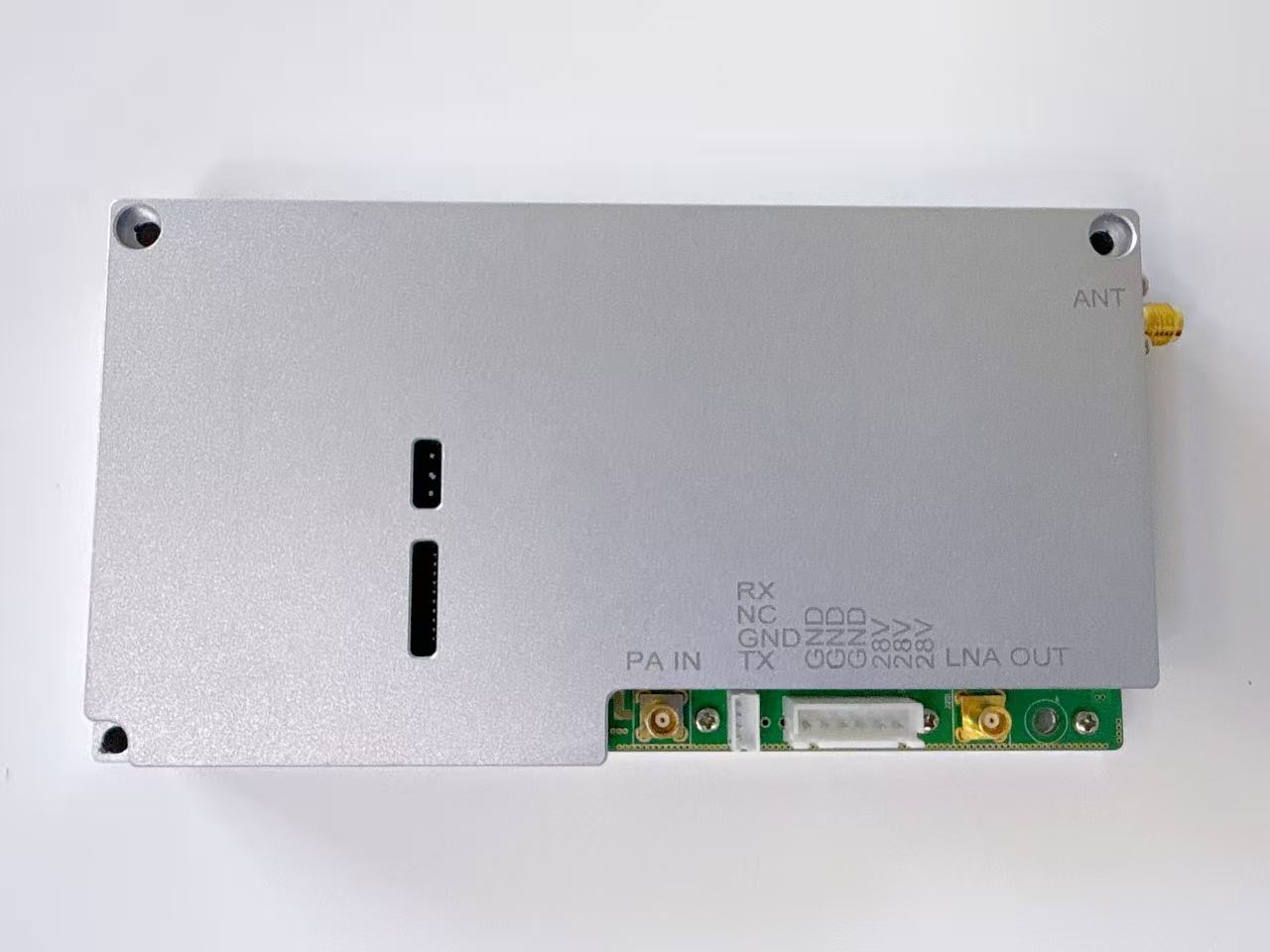

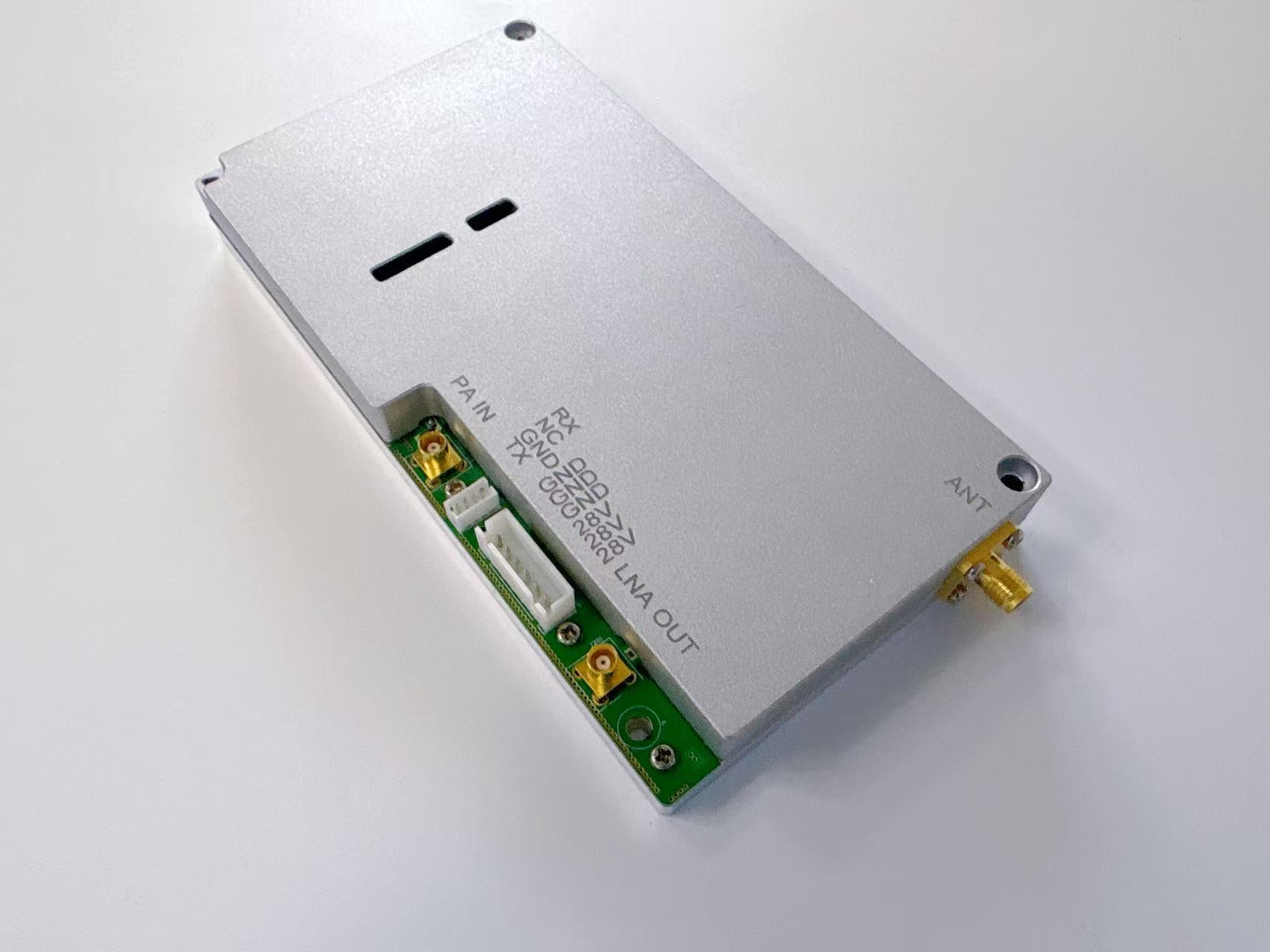

Connecters:	3 connectors in total, all are MCX-K connectors, and all connectors face the side.
Mechanical Dimensions:	1325517
Label:	Inspect the label according to the outline dimension drawing.
