UZI-TDD 1.3-1.5G UL/DL PA 40W Series

Features:
- High reliability, stability and consistency
- Ad - Hoc Network Application: Specifically designed for ad - hoc network scenarios, enabling flexible and decentralized network deployment without relying on fixed infrastructure.
- Uplink Filtering & Low Noise: Incorporates uplink filtering to suppress interference, and the uplink noise figure is ≤ 5dB, minimizing signal noise during amplification.
- High Gain & Stable Output: Provides a maximum gain of 10 ± 2dB for uplink and 51 ± 2dB for downlink, with the downlink having a stable maximum output power of 46 ± 1dBm for reliable signal transmission.
Technical Specification:
Product Name:
1. UZI-TDD-1.3~1.5G-40W-14075-28V

Model:
UZI-TDD-1.3~1.5G-40W-14075-28V
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

RF Repeater FDD Power Amplifier TDD Power Amplifier Anti-Drone Power Amplifier Electronic Fence

Product Description

Features:

• High reliability, stability and consistency

• Ad - Hoc Network Application: Specifically designed for ad - hoc network scenarios, enabling flexible and decentralized network deployment without relying on fixed infrastructure.

• Uplink Filtering & Low Noise: Incorporates uplink filtering to suppress interference, and the uplink noise figure is ≤ 5dB, minimizing signal noise during amplification.

• High Gain & Stable Output: Provides a maximum gain of 10 ± 2dB for uplink and 51 ± 2dB for downlink, with the downlink having a stable maximum output power of 46 ± 1dBm for reliable signal transmission.

Technical Specification:

Product Name:

1. UZI-TDD-1.3~1.5G-40W-14075-28V

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	1. UL:1300-1500MHZ 2. DL:1300-1500MHZ
Max Gain:	1. UL:10±2dB 2. DL:51±2dB
Maximum Output Power:	1. UL:Uncontrolled 2. DL:46±1dBm
Maximum Input Level:	1. UL:NONE 2. DL:-2dBm
Gain Adjustment Range:	NONE
ALC Range:	NONE
In-Band Ripple:	≤2.5dB

Noise Figure:	1. UL:≤5dB 2. DL:NONE
Transmit-receive switching delay:	≤2μs
Tx-Rx Isolation:	≥55dBc
EVM:	≤5% (Peak-to-Average Power Ratio 10.0dB)
VSWR:	≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	26-30V
Operating Current:	With pre-distortion: ≤4.5A
Working Temperature:	-40~+55℃
Over-Temperature Protection:	Alarm and shutdown at +85℃, resume operation at 65℃
Monitoring Functions:	NONE
Transmit - receive wire control interface:	CMOS3.3V

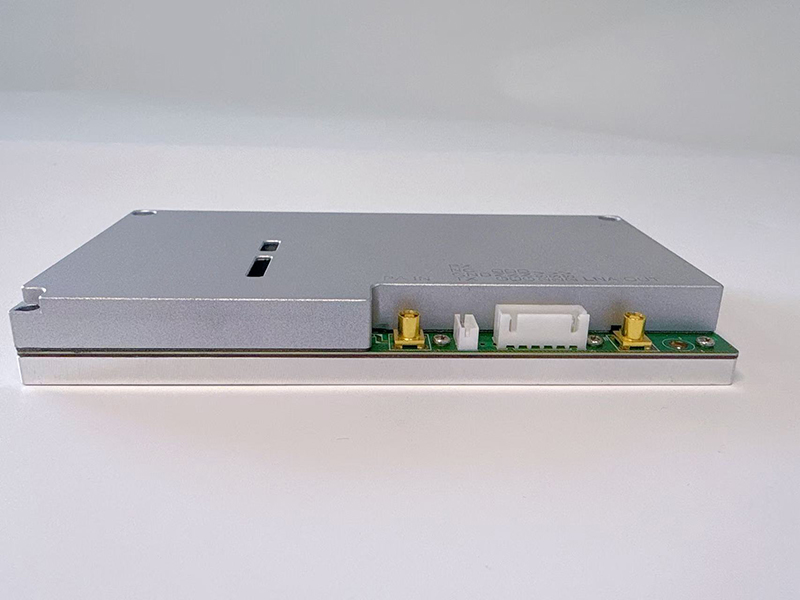

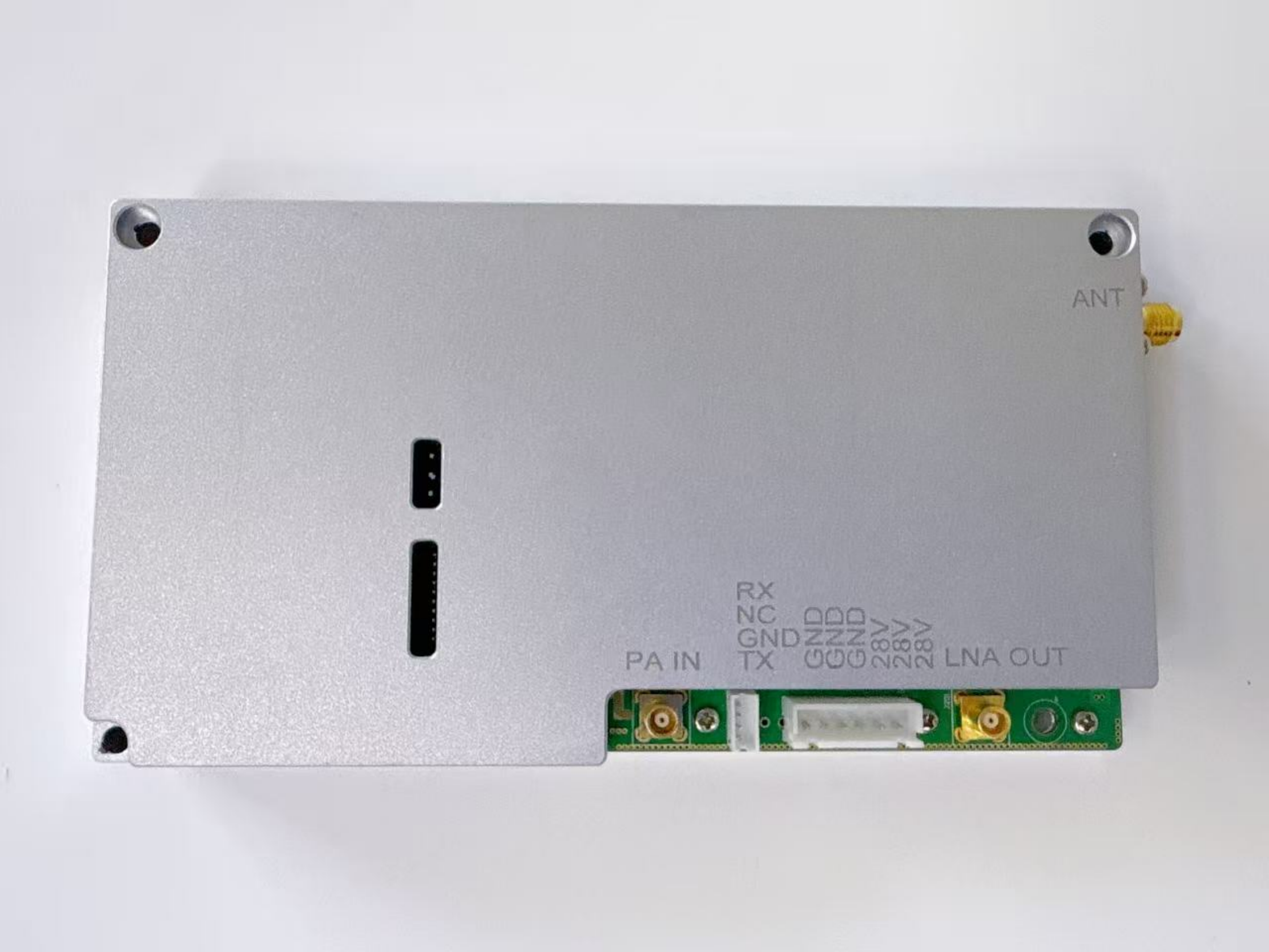

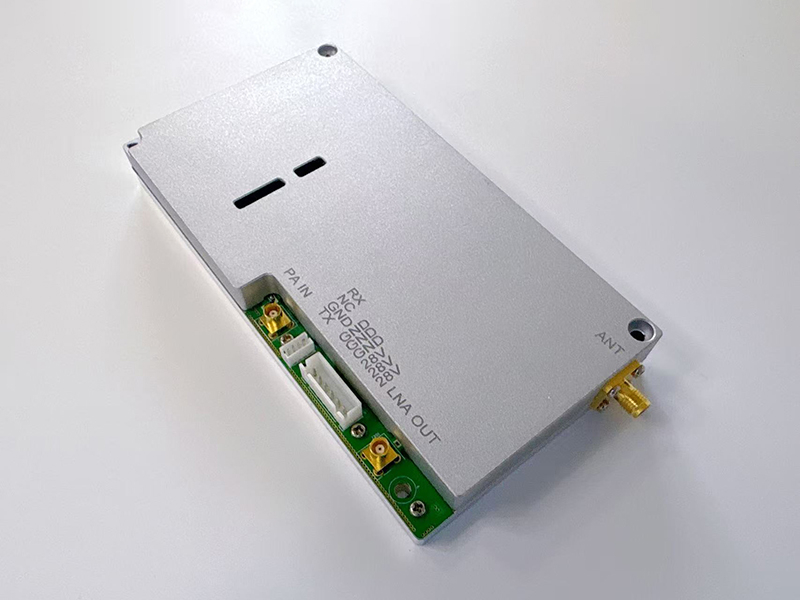

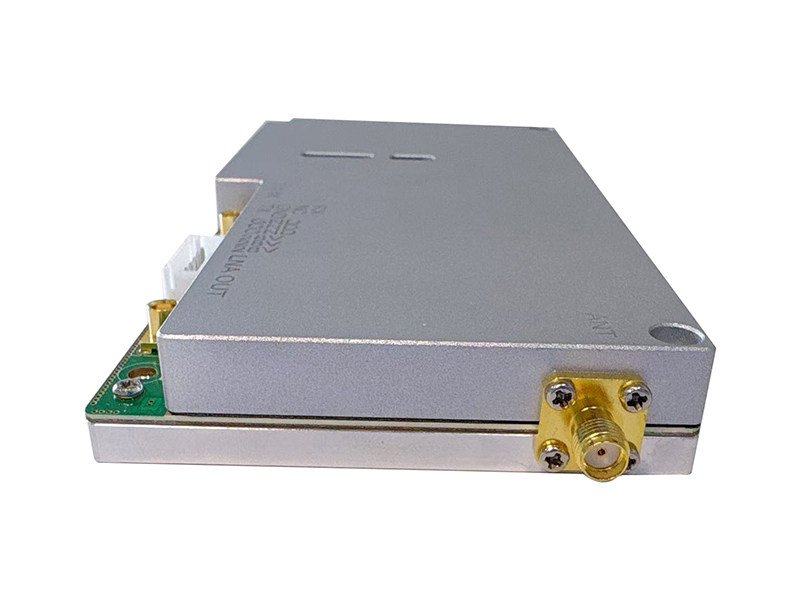

Connecters:	There are 3 connectors in total: PA IN: MCX connector; The remaining ones: SMA connectors

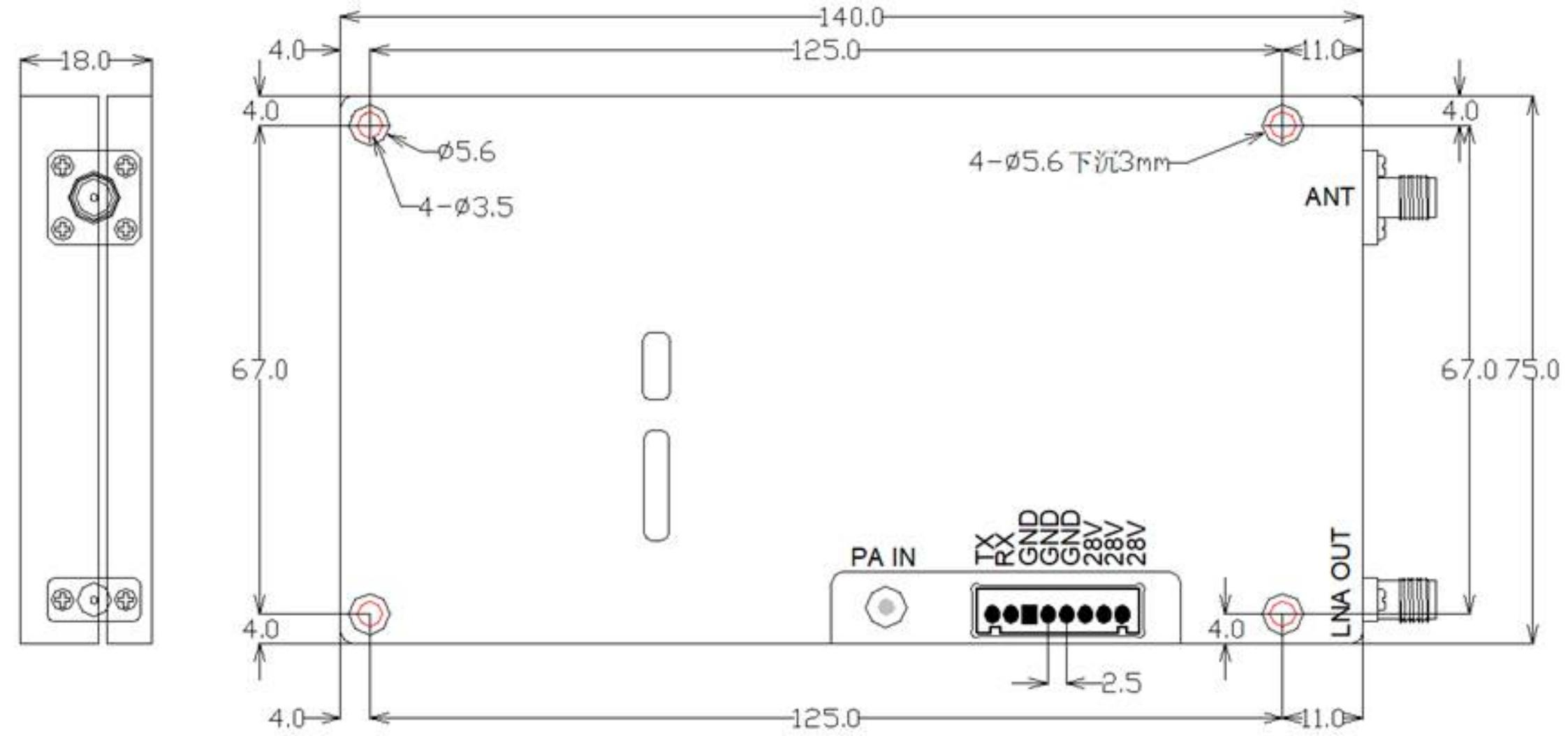

Mechanical Dimensions:	1407518
