UZI-FDD 1.8G ICS+TDD 3.5G ICS MIMO 2V Wireless Repeater

Features:
1. Dual - band operation on FDD 1.8GHz and TDD 3.5GHz for multi - generation network coverage.
2. ICS tech on both bands to suppress interference and ensure stable signal amplification.
3. MIMO capability boosts data throughput and signal reliability.
4. 2W max output power for medium-range coverage with energy efficiency.
5. Combines FDD and TDD modes for global network compatibility.
6. Local (USB) and remote (MODEM/RJ45) monitoring for real - time management.
7. Durable design with wide AC power support and security features.
8. Reliable RF connections via N - Female connectors, plus low noise, high gain, and good ACPR.
9. Easy deployment with factory - configured cables and external antenna support.
10. Complies with industry standards for VSWR, in - band ripple, and transmission delay.
Technical Specification:
Product Name:
1. UZI-FDD1.8GICS+TDD 3.5G ICS MIMO-2W

Model:
UZI-FDD 1.8G ICS+TDD 3.5G ICS MIMO 2V
Brand:
UZIWAVE

Quantity:
Availability:





Inquire

RF Repeater

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	B3: UL:1710MHz-1785MHz DL:1805MHz-1880MHz N78 UL:3300MHz-3800MHz (Band With 500 MHz) DL:3300MHz-3800MHz (Band With 500 MHz)
ICS Self-oscillation Cancellation Degree:	UL:≥25 dB DL:≥25 dB
Max Gain:	UL:80-83 dB DL:80-83 dB
Maximum Output Power:	UL:27±1 dBm DL:33±1dBm
Maximum Lossless Input	UL:0dBm DL:0dBm
Gain Adjustment Range:	UL:≥25dB DL:≥25dB
ALC Range:	UL:≥10dB DL:≥10dB
Gain Flatness:	UL: ATT10dB： ≤±1dB ATT20dB： ≤±1dB ATT25dB： ≤±1.5dB DL ATT10dB： ≤±1dB ATT20dB： ≤±1dB ATT25dB： ≤±1.5dB
Out-of-band Rejection：	UL/DL:Frequency Offset, f_offset_CW at Maximum Gain0.2≤f_offset_CW <1.0 MHz: Total Net Gain ≤60 dB 1.0≤f_offset_CW <5.0 MHz: Total Net Gain ≤45 dB 5.0≤f_offset_CW <10.0 MHz: Total Net Gain ≤45 dB 10.0 MHz≤f_offset_CW: Total Net Gain ≤35 dB
In-Band Ripple:	UL:≤5 dB DL:≤5 dB
Noise Figure:	UL:≤6 dB DL:≤6 dB
Transmission Delay	UL: 4G ≤4.5 μs 5G ≤3 μs DL: 4G ≤4.5 μs 5G ≤3 μs
EVM:	UL:4G ≤6%; 5G ≤3.5% DL:4G ≤6%; 5G ≤3.5%
VSWR:	UL:≤1.5:1 DL:≤1.5:1
ACPR:	UL:≤-45dBc DL:≤-45dBc
Power Supply:	AC 100-240V
Power Consumption:	≤ 300W
Working Temperature:	-25℃～+55℃

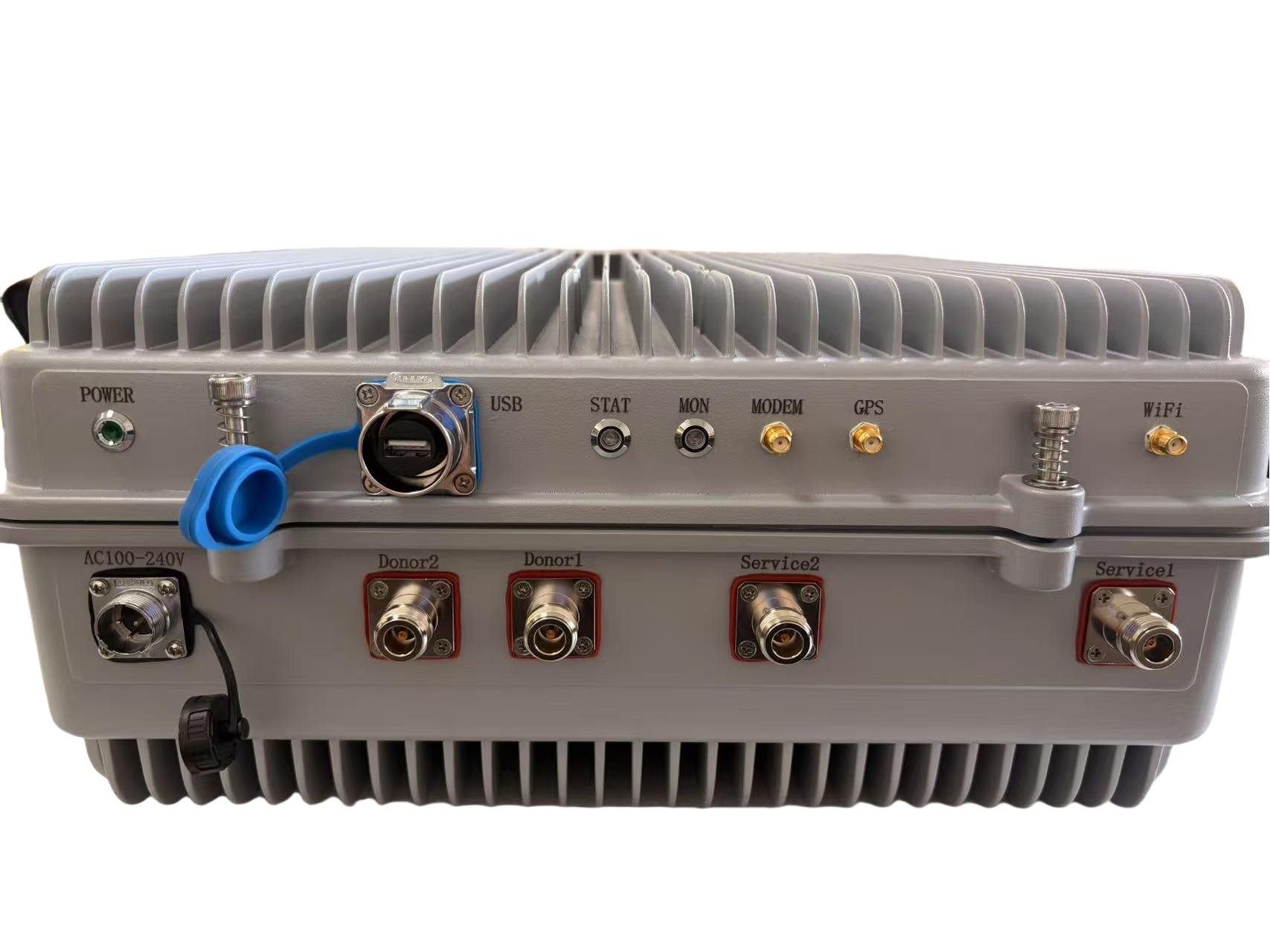

Connector Model:	See the chassis base plate diagram for details. Total of 4 N-Female/50 Ω connectors.
MODEM:	The MODEM is connected to the coupling port of the combiner at the factory. The cable shall be manufactured with an extended length, which must be sufficient to enable simultaneous connection to the SMA connector on the chassis. An external small mobile radio antenna shall also be provided as standard configuration.
Local Monitoring USB Port:	The local monitoring port on the chassis is a USB port. Each device is supplied with 2 data cables (equipped with USB connectors on both ends) at the time of factory shipment.
Door Access Alarm:	The chassis is integrated with a door access alarm function.
Chassis Dimensions:	500×440×187 mm
Weight:	≤ 30 kg
Monitoring Functions:	Monitoring and MODEM Local Monitoring USB Interface Remote Monitoring via MODEM or RJ45
Coupling Degree:	Tested with 1805-1880 MHz Coupling Degree: 20±2 dB
