Uziwave TDD (400-800M) -200W-19140-28V Power Amplifier

Features:
- Covers three frequency bands: 400-600MHz, 500-700MHz, and 600-800MHz, with uplink and downlink operating in the same band.
- Delivers downlink maximum output power of 43±1dBm and gain of 51±2dB, ensuring stable signal transmission.
- Operates at 28V with a maximum current of ≤5A, featuring over-temperature protection (shutdown at 85℃, restart at 65℃).
- Boasts excellent performance indicators: EVM ≤5%, VSWR ≤1.4, and transmit-receive isolation ≥55dBc.
Technical Specification:
Product Name:
1. UZI-TDD-400~600M-20W-1914-28V
2. UZI-TDD-500~700M-20W-1914-28V
3. UZI-TDD-600~800M-20W-1914-28V

Model:
UZI-TDD- 200W-19140-28V
Brand:
Uziwave

Quantity:
Availability:





Inquire

TDD Power Amplifier Power Amplifier Mesh Network Electronic Fence

Product Description

Items:	Uplink (UL) & Downlink (UL) Specifications:
Frequency Range:	UL:400MHz-600MHz DL:400MHz-600MHz UL:500MHz-700MHz DL:500MHz-700MHz UL:600MHz-800MHz DL:600MHz-800MHz
Max Gain:	UL:10±2dB DL:51±2dB
Maximum Output Power:	UL:Uncontrolled DL:43±1dBm
Maximum Input Level:	UL:NONE DL:-7dBm
Gain Adjustment Range:	UL:NONE DL:NONE
ALC Range:	UL:NONE DL:UNCONTROLLED
In-Band Ripple:	≤3dB
Noise Figure:	≤3dB
Tx-Rx Isolation:	≥55dBc
EVM:	≤5% (Peak-to-Average Power Ratio 8.0dB)
VSWR:	≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.)
Operating Voltage:	28V
Operating Current:	≤5A
Working Temperature:	-40～+55℃
Over-Temperature Protection:	Alarm and shutdown at +85℃, resume operation at 65℃
Monitoring Functions:	NONE
Transmit-Receive Wired Control Interface:	CMOS 3.3V

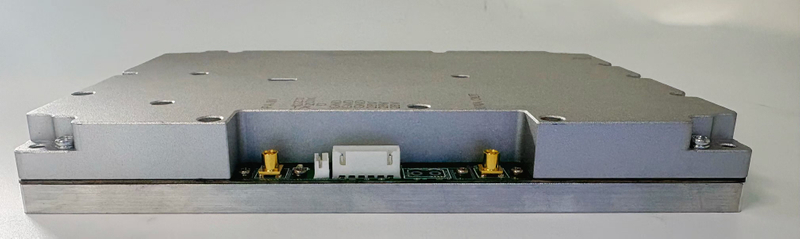

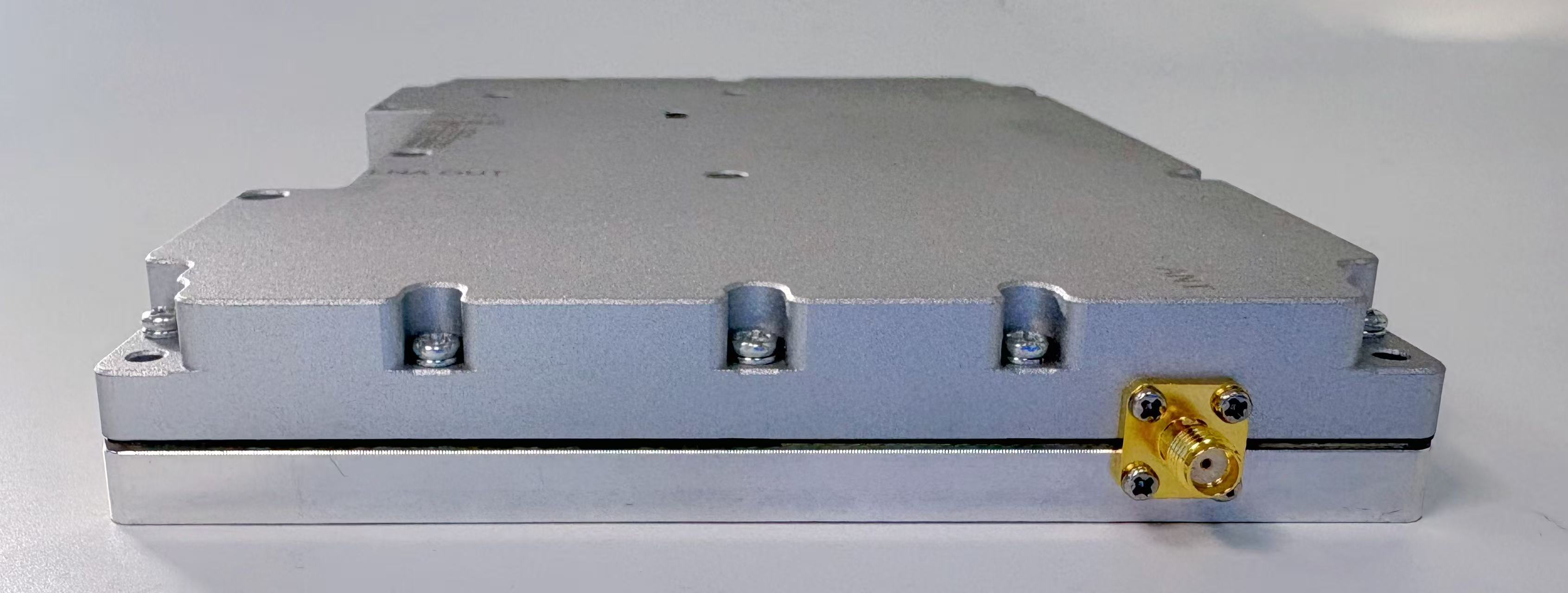

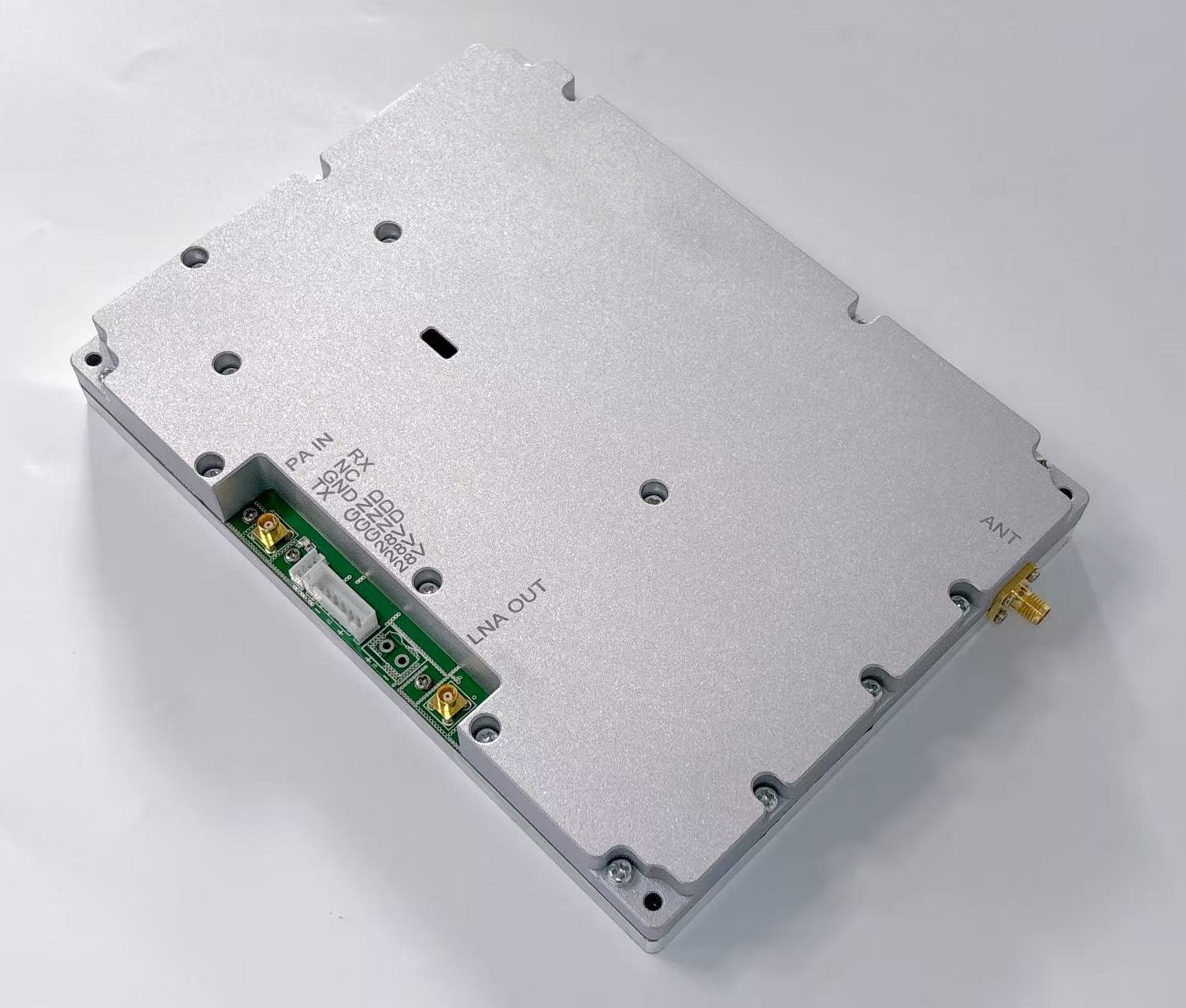

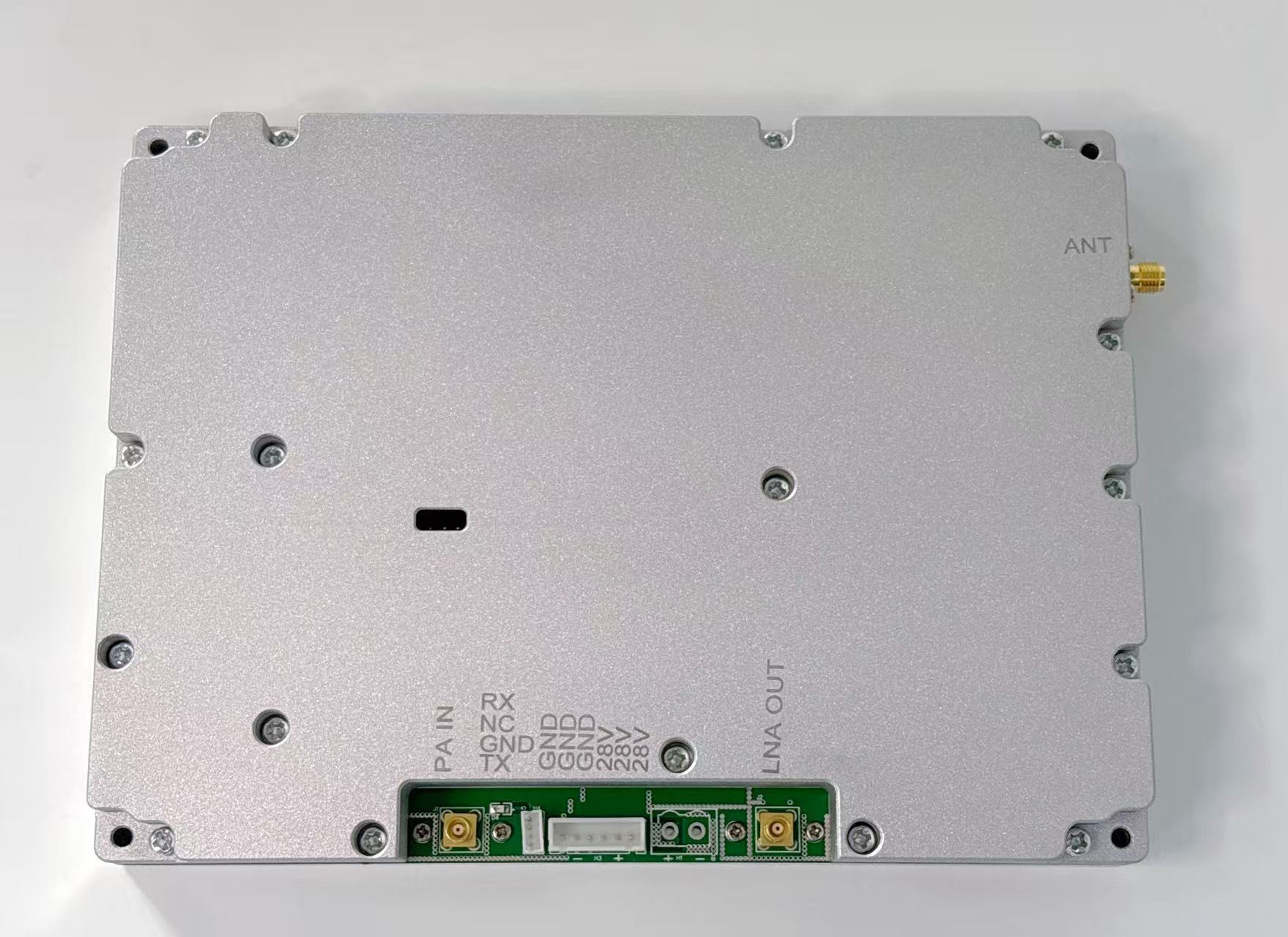

Connectors:	3 connectors in total, PAIN/LNA OUT are MCX connectors, ANT is an SMA connector
Mechanical Dimensions	19014024
